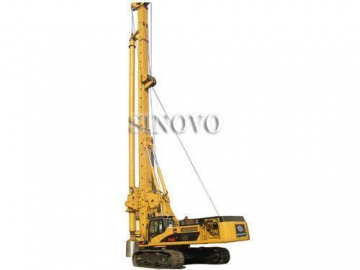

TR200 Rotary Drilling Rig
TR200 Rotary Drilling Rigs
| Technical Parameters | ||
| Euro Standards | U.S Standards | |
| Max drilling depth | 60m | 197 ft |
| Max hole diameter | 1800mm | 71in |
| Engine model | CAT C-7 | CAT C-7 |
| Rated power | 187KW | 251HP |
| Max torque | 200kN.m | 147460lb-ft |
| Rotating speed | 8~27rpm | 8~27rpm |
| Max crowd force of cylinder | 150kN | 33720lbf |
| Max extraction force of cylinder | 190kN | 42712lbf |
| Max stroke of crowd cylinder | 4500mm | 177in |
| Max pulling force of main winch | 170kN | 38216lbf |
| Max pulling speed of main winch | 78m/min | 256ft/min |
| Wire line of main winch | Φ26mm | Φ1.0in |
| Max pulling force of auxiliary winch | 80kN | 17984lbf |
| Undercarriage | CAT 329D | CAT 329D |
| Track shoe width | 800mm | 31in |
| Width of crawler | 3000-4300mm | 118-169in |
| Whole machine weight | 55.5T | 55.5T |
