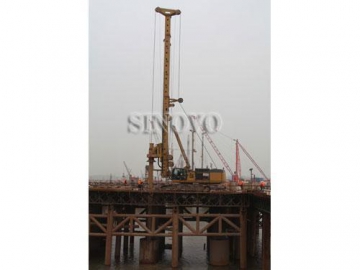

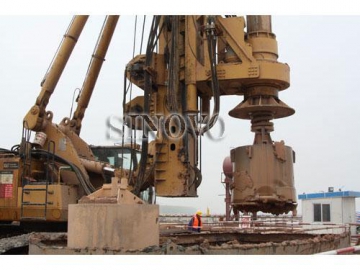

TR360 Rotary Drilling Rig
TR360 Rotary Drilling Rigs
| Technical Parameters | ||
| Euro Standards | U.S Standards | |
| Max drilling depth | 95m | 312 ft |
| Max hole diameter | 2500mm | 98in |
| Engine model | CAT C-13 | CAT C-13 |
| Rated power | 305KW | 409HP |
| Max torque | 320kN.m | 235936lb-ft |
| Rotating speed | 6~23rpm | 6~23rpm |
| Max crowd force of cylinder | 400kN | 89920lbf |
| Max extraction force of cylinder | 400kN | 89920lbf |
| Max stroke of crowd cylinder | 14000mm | 551in |
| Max pulling force of main winch | 300kN | 67440lbf |
| Max pulling speed of main winch | 66m/min | 216ft/min |
| Wire line of main winch | Φ36mm | Φ1.4in |
| Max pulling force of auxiliary winch | 120kN | 26976lbf |
| Undercarriage | CAT 345D | CAT 345D |
| Track shoe width | 800mm | 31in |
| Width of crawler | 3000-4400mm | 118-173in |
| Whole machine weight | 105T | 105T |
