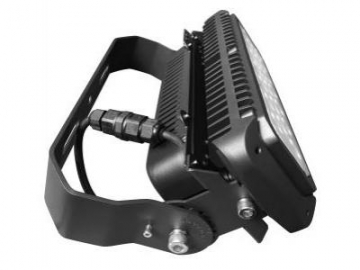

75 Watt LED Area Light Rectangular Aluminum Fixture
Selection
| MODEL | Light Source | Luminous flux(lm) | Beam Angle | Optical Cover | |
| MFL75W30-110 | Osram/Lumileds 3030 2D | 9380 | 110° | clear/Foggy Glass | |
| MFL75W50-25 | Osram/Lumileds 5050 | 8300 | 25° | Pc Lens | |
| MFL75W50-60 | Osram/Lumileds 5050 | 8700 | 60° | Pc Lens | |
| MFL75W50-90 | Osram/Lumileds 5050 | 8900 | 90° | Pc Lens | |
| MFL75W50-130×60 | Osram/Lumileds 5050 | 9525 | 130°×60° | Pc Lens |
- Input Voltage (V): 100-240 VAC 50/60Hz
- LED Power (W): 68
- System Power (W): 76
- Power Factor: >0.95
- System Efficiency (lm/w): Max.165
- Color Temperature (K): 3000/4000/5700
- CRI : >80(3030LEDs), >70(5050LEDS)
- IP Class: IP65
- Housing: Die-casting Aluminum
- Working Temperature(℃): -20 to+50
- Working Humidity (RH %): 10-90
- Power cable: 3×1.0m㎡ HO5RN-F
- Net weight (Kg): 3.2(Glass)/3.1(PC Lens)
- Dimension of Inner Box (MM): 385*205*350
- Dimension of outer Carton (MM): 79*43.5*37(4PCS/CARTON)
