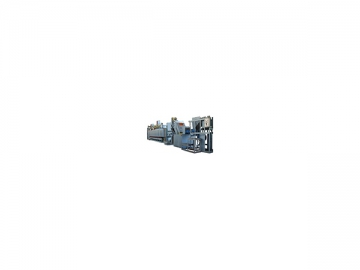

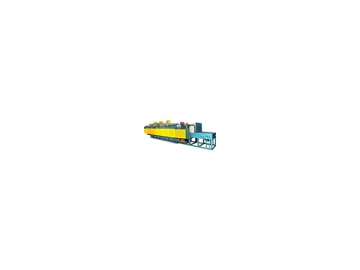

950℃ Industrial Carburizing and Quenching Furnace

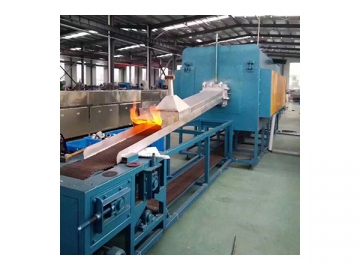

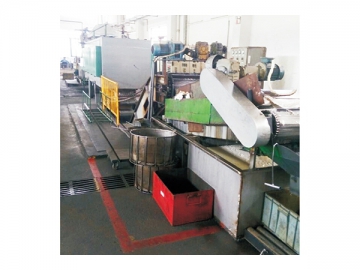

Mesh belt carburizing and quenching furnaces are used for chemical heat treatments, including quenching, thin layer carburizing, and carbonitriding under shielding gasses for mass-produced, precise workpieces.
Applicable products
- Micro-parts (like chains, watches, instrument parts, small holdings)
- Inner and outer bearing rings
- Hardware tools
- Sewing machines
- Motorcycle parts
Parameters
Model | Rated power (KW) | Rated voltage (V) | Max. Operating temperature (℃) | Working area dimensions (mm) | Belt speed (mm/min) | Gas consumption (m3/h) | Production rate (kg/h) | Furnace mass (kg) | ||||
Length | Width | Height | Quenching | Carburizing | Carbonitriding | |||||||
RCWF9-10-9 | 10 | 380 | 950 | 1800 | 120 | 20 | 17~180 | 2~3 | 20 | 10 | 5 | 3500 |
RCWF9-18-9 | 18 | 380 | 950 | 1800 | 150 | 20 | 17~180 | 4~6 | 40 | 20 | 10 | 4000 |
RCWF9-20-9 | 20 | 380 | 950 | 2200 | 150 | 30 | 17~180 | 4~6 | 40 | 20 | 10 | 4500 |
RCWF9-40-9 | 40 | 380 | 950 | 2800 | 150 | 50 | 17~180 | 6~8 | 60 | 30 | 20 | 5000 |
RCWF9-50-9 | 50 | 380 | 950 | 2500 | 300 | 50 | 17~180 | 8~10 | 80 | 35 | 20 | 5000 |
RCWF9-60-9 | 60 | 380 | 950 | 2500 | 450 | 50 | 17~180 | 8~10 | 100 | 40 | 30 | 5500 |
RCWF9-70-9 | 70 | 380 | 950 | 3600 | 300 | 60 | 17~180 | 8~10 | 150 | 60 | 40 | 6500 |
RCWF9-75-9 | 75 | 380 | 950 | 3500 | 300 | 75 | 17~180 | 8~10 | 180 | 90 | 45 | 6800 |
RCWF9-90-9 | 90 | 380 | 950 | 4600 | 300 | 75 | 17~180 | 9~12 | 200 | 100 | 55 | 7500 |
RCWF9-100-9 | 100 | 380 | 950 | 4300 | 400 | 70 | 17~180 | 9~12 | 250 | 120 | 70 | 7500 |
RCWF9-120-9 | 120 | 380 | 950 | 4700 | 400 | 75 | 17~180 | 11~13 | 280 | 130 | 75 | 8000 |
RCWF9-150-9 | 150 | 380 | 950 | 4700 | 600 | 100 | 17~180 | 13~16 | 300 | 150 | 80 | 8500 |
