NC-S CO2 Laser Engraver
The NC-S CO2 laser engraver has small volume and low power. It is portable and used for engraving small parts, such as molds, small handiwork, signets, and more.
Applicable Materials: wood, paper, leather, cloth, polymethyl methacrylate, plastics, rubber, ceramic, jade, light metals, etc.
Functions: It is mainly used for engraving.
Technical parameters for available models
| Model | NC-S4040 | NC-S4060 |
| Laser Tube Power | 40w/50w | 60w/80w |
| Laser Tube Type | СО2 Laser Tube | СО2 Laser Tube |
| Working Size | 400*400mm | 400*600mm |
| Cooling Way | Water-cooled | Water-cooled |
| Water Pump | Yes | CW3000 |
| Engraving Speed | 0-60000mm/min. | 0-60000mm/min. |
| Cutting Speed | 0-40000mm/min. | 0-40000mm/min. |
| Lens | 3 Reflective Mirrors + 1 Focus Mirror | 3 Reflective Mirrors + 1 Focus Mirror |
| Control System | PC | Ruida |
| Air Pump | Yes | Yes |
| Software Compatibility | 100% Software compatibility | 100% Software compatibility |
| Minimum Character Size | English:1.0*1.0mm | English:1.0*1.0mm |
| Positional Accuracy | ≤±0.01mm | ≤±0.01mm |
| Support Image Format | PLT, AI, BMP, DST, DXF | PLT, AI, BMP, DST, DXF |
| Software Supported | CorelDraw, Photoshop, Autocad, Tajima | CorelDraw, Photoshop, Autocad, Tajima |
| Weight | 100kg | 270kg |
| Size | 85*85*70mm | 1600*920*1200mm |

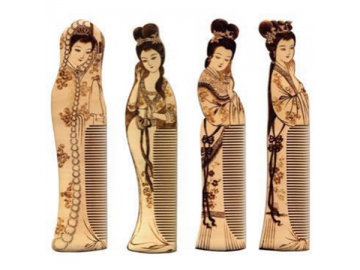

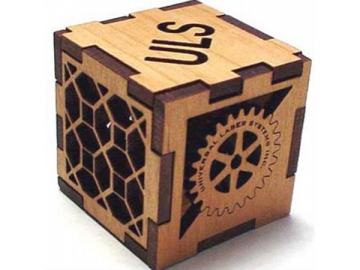

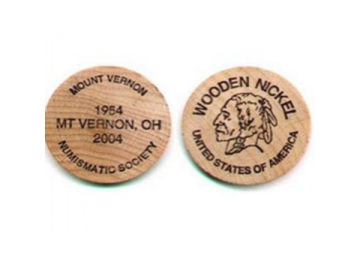

Samples
Features
- The laser engraver uses a square linear guide rail made by Taiwan Hiwin with a service life of more than 20 years.
- The working table is an aluminum honeycomb panel with an exhaust inelt on the surface to suction workpieces to the table. The table is strong and durable.
- Up and down worktable, it is easy to process different workpieces.
- This laser engraving machine is cost-effective and suitable for small enterprises.
