PVC Synthetic Leather Calendering Line Manufacturer

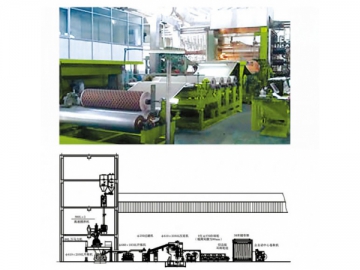

PVC Synthetic Leather Calendering Line

: http://huahanmachine.com

Specifications

Model Item	Φ12"x36"L5	Φ16"x48"L5	Φ16"x48" Ґ4	Φ18"x54"L5	Φ18"x54" Ґ4	Φ20"x63" Ґ4
Model Item	Φ305x900 L5	Φ410x1220 L5	Φ410x1220 Ґ4	Φ450x1300 L5	Φ450"x1300 Ґ4	Φ510x1600 Ґ4
Roller Size	Φ305x900	Φ410x1200	Φ410x1200	Φ450x1300	Φ450"x1300	Φ510x1600
Roller Arrangement	L pattern	L pattern	Ґ pattern	L pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~40	6~40	6~40	6~40	6~40	6~40
Leather Thickness ( mm)	0.07~0.7	0.07~0.7	0.05~0.7	0.07~0.7	0.05~0.7	0.05~0.7
Leather Width (mm)	700	1,000	1,000	1,000	1,000	1,300
Motor Power (kw)/ Number of Motor	15/5	22/5	22/2 15/2	30/5	30/2 22/2	22/2 15/2
Model Item	Φ22"x66" Ґ4	Φ22"x66"L5	Φ24"x80" Ґ4	Φ24"x72"L5	Φ24"x72" Ґ 5	Φ26"x90" Ґ4
Model Item	Φ560x1675 Ґ4	Φ560x1675 L5	Φ610x2030 Ґ4	Φ610x1830 L5	Φ610"x1830 Ґ 5	Φ660x2300 Ґ4
Roller Size	Φ560x1680	Φ560x1680	Φ610x2030	Φ610x1830	Φ610"x1830	Φ660x2300
Roller Arrangement	Ґ pattern	L pattern	Ґ pattern	L pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~60	6~60	6~60	6~60	6~60	6~60
Leather Thickness ( mm)	0.05~0.7	0.07~0.7	0.07~0.7	0.05~0.8	0.07~0.7	0.05~0.7
Leather Width (mm)	1,350	1,350	1,830	1,500	1,500	1,850
Motor Power (kw)/ Number of Motor	55/2 37/2	75/3 55/2	75/2 55/2	75/2 90/3	75/2 90/3	75/2 90/2
Model Item	Φ26"x80" Ґ 5	Φ26"x80"L5	Φ28"x100" Ґ4	Φ28"x100" Ґ 5	Φ28"x100" L5	Φ30"x102" Ґ4
Model Item	Φ660x2030 Ґ 5	Φ660x2030 L5	Φ710x2550 Ґ4	Φ710x2550 Ґ 5	Φ710"x2550L 5	Φ760x2600 Ґ4
Roller Size	Φ660x2030	Φ660x2030	Φ710x2550	Φ710x2550	Φ710"x2550	Φ760x2600
Roller Arrangement	Ґ pattern	L pattern	Ґ pattern	Ґ pattern	L pattern	Ґ pattern
Production Rate (m/min)	6~60	6~60	6~60	6~60	6~60	6~60
Leather Thickness ( mm)	0.05~0.7	0.07~0.7	0.05~0.7	0.07~0.8	0.07~0.7	0.05~0.7
Leather Width (mm)	1,600	1,600	2,050	2,050	2,050	2,200
Motor Power (kw)/ Number of Motor	75/2 110/3	75/3 110/3	90/2 110/2	90/2 110/3	90/2 110/3	132/2 90/2
Model Item	Φ30"x102" Ґ 5	Φ32"x110 Ґ4	Φ34"x160" Ґ4	Φ23" ×Φ26"x73" Ґ 7
Model Item	Φ760x2600 Ґ 5	Φ810x2800 Ґ4	Φ860x4050 Ґ4	Φ585" ×Φ660"x1850" Ґ 7
Roller Size	Φ760x2600	Φ810x2800	Φ860x4050	Φ585" ×Φ660"x1850"
Roller Arrangement	Ґ pattern	Ґ pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~60	6~60	6~60	6~60
Leather Thickness ( mm)	0.07~0.7	0.05~0.7	0.05~0.7	0.07~0.8
Leather Width (mm)	2,200	2,250	3,250	1,550
Motor Power (kw)/ Number of Motor	132/3 90/2	132/2 110/2	132/2 185/2	90/2 75/5
