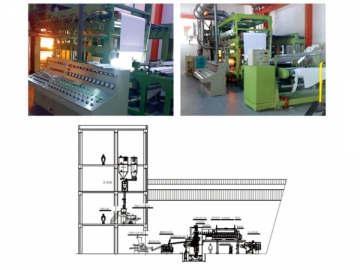

PVC Card Calendering Line Manufacturer

PVC Card Calendering Line

: http://huahanmachine.com

Specifications

Model Item	Φ12"x36"L5	Φ16"x48"L5	Φ16"x48" Ґ4	Φ18"x54"L5	Φ18"x54" Ґ4	Φ20"x63" Ґ4
Model Item	Φ305×900 L5	Φ410×1220 L5	Φ410×1220Ґ4	Φ450×1300 L5	Φ450"x1300Ґ4	Φ510×1600Ґ4
Roller Size	Φ305×900	Φ410×1200	Φ410×1200	Φ450×1300	Φ450"x1300	Φ510×1600
Roller Arrangement	L pattern	L pattern	Ґ pattern	L pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~40	6~40	6~40	6~40	6~40	6~40
Card Thickness (mm)	0.07~0.7	0.07~0.7	0.05~0.7	0.07~0.7	0.05~0.7	0.05~0.7
Card Width (mm)	700	1,000	1,000	1,000	1,000	1,300
Motor Power (kw)/Number of Motor	15/5	22/5	22/2 15/2	30/5	30/2 22/2	22/2 15/2
Model Item	Φ22"x66" Ґ4	Φ22"x66"L5	Φ24"x80" Ґ4	Φ24"x72"L5	Φ24"x72" Ґ5	Φ26"x90" Ґ4
Model Item	Φ560×1675Ґ4	Φ560×1675 L5	Φ610×2030Ґ4	Φ610×1830 L5	Φ610"x1830Ґ5	Φ660×2300Ґ4
Roller Size	Φ560×1680	Φ560×1680	Φ610×2030	Φ610×1830	Φ610"x1830	Φ660×2300
Roller Arrangement	Ґ pattern	L pattern	Ґ pattern	L pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~60	6~60	6~60	6~60	6~60	6~60
Card Thickness (mm)	0.05~0.7	0.07~0.7	0.07~0.7	0.05~0.8	0.07~0.7	0.05~0.7
Card Width (mm)	1,350	1,350	1,830	1,500	1,500	1,850
Motor Power (kw)/Number of Motor	55/2 37/2	75/3 55/2	75/2 55/2	75/2 90/3	75/2 90/3	75/2 90/2
Model Item	Φ26"x80" Ґ5	Φ26"x80"L5	Φ28"x100" Ґ4	Φ28"x100" Ґ 5	Φ28"x100" L5	Φ30"x102" Ґ4
Model Item	Φ660×2030Ґ5	Φ660×2030 L5	Φ710×2550Ґ4	Φ710×2550Ґ 5	Φ710"×2550L5	Φ760×2600Ґ4
Roller Size	Φ660×2030	Φ660×2030	Φ710×2550	Φ710×2550	Φ710"x2550	Φ760×2600
Roller Arrangement	Ґ pattern	L pattern	Ґ pattern	Ґ pattern	L pattern	Ґ pattern
Production Rate (m/min)	6~60	6~60	6~60	6~60	6~60	6~60
Card Thickness (mm)	0.05~0.7	0.07~0.7	0.05~0.7	0.07~0.8	0.07~0.7	0.05~0.7
Card Width ( mm)	1,600	1,600	2,050	2,050	2,050	2,200
Motor Power (kw)/Number of Motor	75/2 110/3	75/3 110/3	90/2 110/2	90/2 110/3	90/2 110/3	132/2 90/2
Model Item	Φ30"x102" Ґ5	Φ32"x110Ґ4	Φ34"x160" Ґ4	Φ23"xΦ26"x73" Ґ7
Model Item	Φ760×2600Ґ5	Φ810×2800Ґ4	Φ860×4050Ґ4	Φ585"xΦ660"x1850" Ґ7
Roller Size	Φ760×2600	Φ810×2800	Φ860×4050	Φ585"xΦ660"x1850"
Roller Arrangement	Ґ pattern	Ґ pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~60	6~60	6~60	6~60
Card Thickness (mm)	0.07~0.7	0.05~0.7	0.05~0.7	0.07~0.8
Card Width (mm)	2,200	2,250	3,250	1,550
Motor Power (kw)/Number of Motor	132/3 90/2	132/2 110/2	132/2 185/2	90/2 75/5
