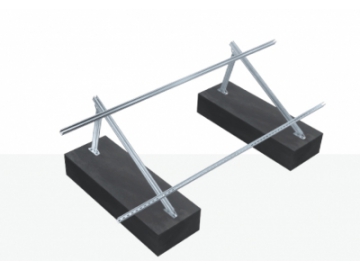

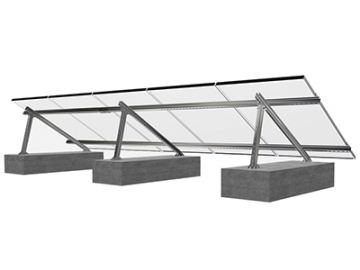

Rooftop Mounted Solar Panel Racking System Type RMIII
The MRac rooftop mounted solar panel racking system type RMIII is applicable for flat roofs and meets the requirements for different projects that require a roof connection through a concrete foundation or concrete rail. The system is made of steel material through a hot dip galvanizing process, ensuring the entire racking system is strong and durable, as well as snow and wind resistant. It is also compatible with most photovoltaic module products available on the market today, and is preassembled in the factory to ensure the overall stability, and improve installation efficiency.
- For Flat Roof
- Solar Panel Layout: horizontal panel installation & vertical panel installation
- Mounting Angle
- Applicable Solar Panels: framed panels
- Quality & Warranty
| Product Name | Rooftop Mounted Solar Panel Racking System Type RMIII | Design Standard | AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 , |
| Mount Location | Flat Roof , Sloped Roof | International Building Code IBC 2009 | |
| Mount Base | Concrete Foundation | California Building Code CBC 2010 | |
| Mount Angle | 0~60° | Rack Material | Q235B (Hot-Dip Galvanizing) |
| Wind Load | 60m/s | Fastener Material | Zn-Ni Alloy & Carbon Steel |
| Snow Load | 1.6KN/m2 | Mounting Accessories Material | Al6005-T5 (Surface Anodic Oxidation） |
| Applicable Solar Panels | Framed Panels & Frameless Panels | Column color | Natural Silver or According to Customer |
| Solar Panel Layout | Horizontal Panel Installation , Vertical Panel Installation | Warranty Period | 15 years |
- TUV Test
- Patent
- AS NZS 1170 Certificate
- SGS Material Analysis
- ISO 9001 Certification
- SAAEA
- U20 Mid Clamp
- Back Support
- End Clamp
- Triangle Connectors
- Rail
- Splice for Rail
- Diagonal brace
