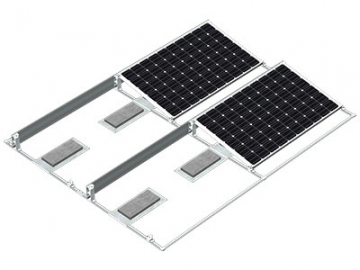

Solar Panel Rooftop Mounted Racking System (Matrix Type)
The MRac solar panel rooftop mounted racking system matrix type is made of aluminum alloy with a high mechanical strength. The high-density design ensures the overall stability and requires fewer accessories, thus making installation faster and saves installation space.
The solar panel design array ensures the entire system is more stable. This solar panel product is designed with a concrete mount foundation and wind shield, making a heavy mount foundation unnecessary. Users can choose from a concrete foundation or ballasted plate foundation to meet their roof requirements, and this product features an excellent wind resistance to solve inadequate roof load capacities.
- For Flat Roof
- Solar Panel Layout: horizontal panel installation
- Mounting Angle: 10°
- Applicable Solar Panels: framed panels
- Unilateral array of solar panels
- Quality & Warranty
| Product Name | Solar Panel Rooftop Mounted Racking System Matrix Type | Design Standard | AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 , |
| Mount Location | Flat Roof , Open Area | International Building Code IBC 2009 | |
| Mount Base | Concrete Foundation | California Building Code CBC 2010 | |
| Mount Angle | 10° | Rack Material | Al6005-T5 (Surface Anodic Oxidation） |
| Wind Load | 60m/s | Fastener Material | Zn-Ni Alloy & Stainless Steel SUS304 |
| Snow Load | 1.6KN/m2 | Mounting Accessories Material | Al6005-T5 (Surface Anodic Oxidation） |
| Applicable Solar Panels | Framed Panels | Column color | Natural Silver or According to Customer |
| Solar Panel Layout | Horizontal Panel Installation | Warranty Period | 15 years |
- TUV Test
- Patent
- AS NZS 1170 Certificate
- SGS Material Analysis
- ISO 9001 Certification
- SAAEA
- C Clamp Kit
- End Clamp
- Mid Clamp
- Front Mounting Support
- Base Rail
- Back Mounting Support of Solar Panel
- Unilateral Ballasted Plate
- Bilateral Ballasted Plate
