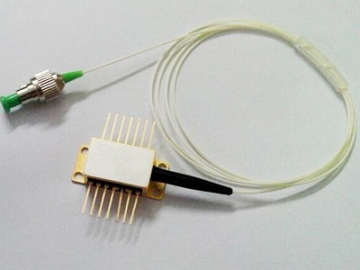

InGaAs 14-PIN Butterfly APD
Features
- Long wavelength operation
- Package:14pinbutterflypackage
- Built-in TEC and monitor
- Low dark current
- MM fiber pigtail with FC/APC connector
- Excellent reliability compliance to GR-468-CORE
- Compliance to RoHS standard
- High linearity, High responsivity.
Applications
Optical fiber sensor system
Optical fiber communication system
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Forward Current | IF | - | - | 10 | mA |
| Reverse Current | IR | - | - | 2 | mA |
| Operating Case Temp. | TC | -40 | - | 85 | °C |
| Storage Temperature | TSTG | -40 | - | 85 | °C |
| Lead Soldering Temp. | TSOL | - | - | 260(10s) | °C |
| Reverse Voltage | Vr | - | 2 | Vbr | V |
Optical & Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
| Reverse Breakdown Voltage | VBR | 35 | 42 | 55 | V | Id=10uA, Tc=25℃ |
| Optical Wavelength | λ | 900 | - | 1700 | nm | - |
| Dark Current | ID | - | 10 | 50 | nA | Tc=25℃ VR=0.9Vbr |
| Terminal Capacitance | Ct | - | 0.38 | 0.5 | pF | f=1MHz,Vr=0.9Vbr |
| Cut-off Frequency | fC | 2.0 | 3.0 | - | GHz | Tc=25℃VR=0.9Vbr |
| Responsivity | S | 4.0 | 5.5 | - | A/W | λ=1310nm, VR=0.9Vbr,25°C |
| TEC Current | Itec | - | - | 1500 | mA | Tc=25℃VR=0.9Vbr |
| Thermistor | RT | 9.9 | 10 | 10.1 | kΩ | @25℃ |
Pin Assignment:
Dimensions are in millimeters.All dimensions are ±0.1 mm unless otherwise specified.
Order Information
BAP-2XXXM4
| B | AP | -2 | X | X | X | M4 |
| Mode | Product Type | Bandwidth | Connector | Fiber Type | Pigtail Length | Multifactor |
| Butterfly | - | 2：2.5Gb/s | 1：FC/APC 2：FC/PC 3：SC/APC 4：SC/PC W：Without | S9：9/125/900um M5：50/125/900um M6：62.5/125/900um | 05：0.5M 10：1.0M | M4：40 |
