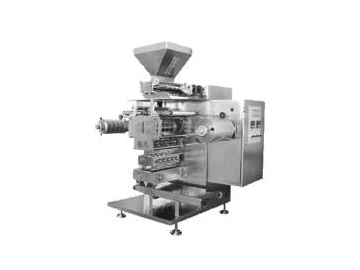

Granule Packing Machine, RZ-K350D

Application of Granule Packing Machine
The granule packing machine is suitable for packing loose, non-sticky granular materials such as pellets, sugar, salt, soup, oatmeal, seeds, coffee, instant drinks, pills, and more. The vertical packaging machine is most commonly used in the pharmacy, food, daily chemicals and agriculture industries.

Main Features of Granule Packing Machine
1. RezPack granule packing machine provides three-step sealing roller and four side sealing, with the film running continuously. The vertical packaging machine has the advantages of stable performance, low noise, firm, airtight sealing, smooth, elegant bags and extraordinary packing efficiency.
2. Famous PLC and touch screen to make adjusting easy.
3. Photoelectric tracking system is used to ensure correct printing and accurate counting.
4. The granule packing machine comes with a superior transducer for stepless speed regulation and an intelligent temperature controller for easy adjustment of sealing temperature.
5. By use of a servo motor driver, the pouch length can be set up directly at the touch screen. Vertical sealing and horizontal sealing offers automatic in-phase tracking. Compared to a machine with a mechanical driver, the granule packing machine is more time and material saving and easier to adjust. Additionally, the packaging machine offers stable and accurate bag drawing.
6. Measuring cup is adopted for automatic feeding and precise dosing. It can fill materials with high temperature, and thus is more suitable for high speed bag packing machine.
7. The granule packing machine has a wide application. Cutting method option: flat cutting (with tear notch), fracture line cutting
8. Option: ink roller coding machine

Main Specifications of Granule Packing Machine
Item Specifications Remark
Pouch length 50-300mm Adjustable (within the length range)
Pouch width 50-175mm Should change bag former
Filling capacity 1-150ml Based on dosing system
Packing speed 30-60bags/min Single lane Based on material and bag size
Feeding device Measuring cup
Standard cutting device Smooth cutting, with tear notch, dashed line cutting
Sealing type 4 side sealing
Driver system Servo motor /step motor A choice between two
Applicable film PET/AL/PE, PET/PE, NY/PE, NY/AL/PE etc.
Film width 350mm
Film roller specification Film outer diameter< 300mm, Film inner diameter 70-76mm
Voltage 220V single phase, 50Hz Made in accordance with customer request
Total power 5.5Kw
G.W 650Kg
Package dimension 1400×1000×2100mm ( L× W×H)
Optional device Ink roller printer, embossing type dating unit

As a specialized Chinese granule packing machine manufacturer, RezPack provides an extensive line of packing machinery for worldwide customers. RezPack products include vertical packaging machine, pillow type packaging machine, conveyor equipment, measuring equipment, and many others, to accommodate whatever you may need. RezPack has received the ISO9001 certification due to its dedication to management in line with international standards. This, together with rich production experience, enables RezPack to make high quality, CE certified, and competitively priced packing machine. Located in Ruian city in Zhejiang province, RezPack has easy access to complete infrastructure and convenient transportation. This allows RezPack to make prompt deliveries at reasonable rates for its clients. The staff at RezPack warmly welcomes global buyers to try its products and looks forward to working with more global customers.
