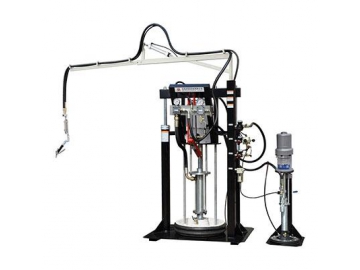

Glass Sealant Coating Machine
- GT05
- GT02
This glass sealant coating machine is the dedicated coating machine for insulating glass and curtain wall insulating glass production. It can implement the mixing and coating of two kinds of glues. This machine is applicable for the coating of polysulfide, structural adhesive and PUR adhesive.
Parameter
| Model | GT02 | GT05-Q |
| Mix Ratio | 6:1~14:1 | 6:1~14:1 |
| Charging Basket | 200L | 200L |
| Curing Agent Basket | 20L | 20L |
| Beat Rubber Quantit | 1.0m /min | 1.0m /min |
| Squeeze Pressure | 25Mpa | 25Mpa |
| Air Pressure | 0.5~0.8Mpa | 0.5~0.8Mpa |
| Weight | 650kg | 650kg |
| Outside Dimension | 1100×950×1630mm | 1420×850×1860mm |
Feature:
- It implements the mixing and coating of two-component glues in the secondary sealing process.
- The coating machine pump is made of stainless steel, and adopts quenching treatment, so it has high strength and excellent corrosion resistance performance.
- Teflon seal is used for the sealing to provide excellent sealing performance.
