Vertical Glass Seaming Machine

: http://north-glass.com/1-3-4-vertical-washer/index.html

This vertical glass seaming machine is a vertical servo control CNC edge deletion machine. It consists of 5 primary parts: glass loading unit, glass inputting unit, glass grinding unit, glass uploading unit and electric control cabinet. It uses a diamond emery tape for the edge deletion process, thus does not require users to input the glass size.

Parameter:

Model	GLMC2500-CNC	GLMC2000-CNC
Input Voltage	380V 50Hz	380V 50Hz
Total Power	18	15
Air Pressure (Mpa)	0.5~0.8	0.5~0.8
Cutting Glass Size	2500×3500	2000×3000
Min Glass Size	600×250	600×250
Glass Thickness	3~12	3~12
Working Speed (m/min)	0~15	0~15
Total Weight (kg)	4500	3500
Size of Line (mm)	13000×2500×4200	11000×2500×3700

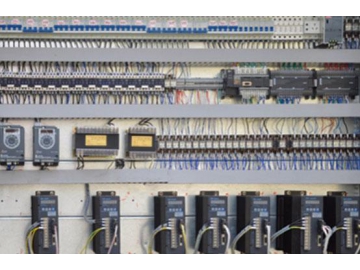

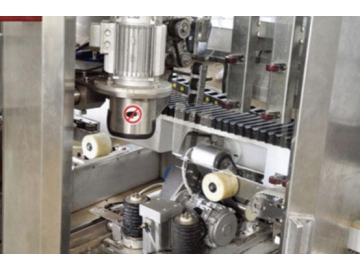

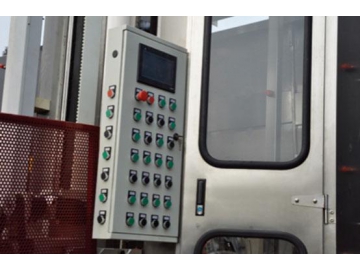

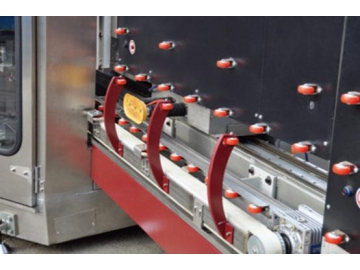

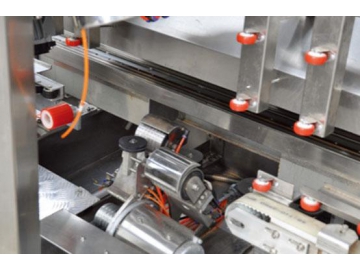

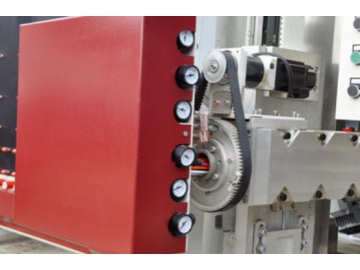

Details Show:

Feature:

The vertical design decreases occupied factory space, and makes glass loading/unloading easier and safer.
This vertical glass seaming machine is consists of the glass loading part, glass inputting part, glass grinding unit, glass uploading part, and electric control cabinet.
This system can automatically recognize the glass size during the edge deleting process.
Operators need only place the glass on the loading shelf, and all other work will be automatically carried out by the machine. This saves labor costs, and improves operation safety levels.
Diamond emery tape is used for the edge deleting process, and the chamfer edge angle is smooth and fine with no cracks. This ensures the glass will not be damaged in later high temperature tempering processes.
It is applicable for edge deleting for LOW-E glass, and the fixed sucking disc will not touch the glass surface, thus preventing the glass film from being grazed.
