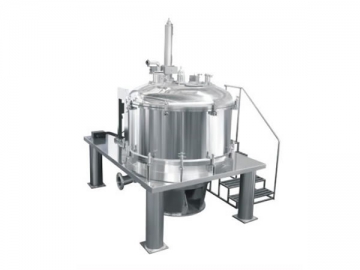

Automatic Shaking Bag Centrifuge

: http://sdlcentrifuge.com

The L(P)LGZ automatic shaking bag centrifuge has all the advantages that a common vertical bottom discharge scraper centrifuge boasts. With a frequency converter, it realizes fully automatic operation, and either its cover or its housing can be opened according to customer needs.

During work, the filter bag is moved up and down vigorously inside the drum to offer an oscillation effect for the removal of residual heel, and this automatic centrifuge could be fitted with an optional residual heel removal system for better performance. In addition, this residual heel removal system has gained national patent in China.

Technical Data of L(P)LGZ Automatic Shaking Bag Centrifuge

Model	L(P)LGZ-800	L(P)LGZ-1000	L(P)LGZ-1250	L(P)LGZ-1600
Drum diameter (mm)	800	1COO	1250	1600
Drum height (mm)	400	420/580	500/630	800/720
Drum volume (L)	100	110/190	310/400	800/720
Loading capacity (kg)	130	140/250	400/520	1000/870
Max. speed (r/min)	1500	1080/1200	1000/1200	850
Max. separating factor	1007	652/805	696/1006	646
Motor power (kW)	7.5	15	18.5/22	37
Machine size with shock absorber (mm)	1700×1400 ×2350	2100×1600×2340/ 2100×1600×2600	2300×1800×2400	3000×2400×3100
Weight (kg)	2100	3600/3900	5600	12000

Structure of Automatic Shaking Bag Centrifuge

1. Scraper Cylinder
2. Cover
3. Housing
4. Drum
5. Supporting Jacket for Filter Bag
6. Bearing Seat

7. Oil Cylinder for Cover Opening
8. Motor
9. Oil Cylinder for Filter Bag
10. Shock Absorber
11. Base Plate
12. Manhole

13. Liquid Skimming Device
14. Explosion-proof Light
15. Wash Pipe
16. Feed Pipe
17. Fill Level Controller
18. Water Outlet Pipe
