Bag Lifting Centrifuge

: http://sdlcentrifuge.com

Modified and upgraded from L(P)GZ and L(P)D series, the L(P)DG bag lifting centrifuge has a loosening scraper on the cover to make the subsequent discharge process much easier.

Technical Data of Bag Lifting Centrifuge

Model	L(P)DG- 800	L(P)DG- 1000	L(P)DG- 1200	L(P)DG- 1250	L(P)DG- 1250A	L(P)DG- 1500	L(P)DG- 1600	L(P)DG- 1800
Drum diameter (mm)	800	1000	1200	1250	1250	1500	1600	1800
Drum height (mm)	400	400	480	500	600	720	800	750
Drum volume (L)	90	140	250	300	400	700	845	910
Max. feeding capacity (kg)	135	200	300	400	520	800	1000	1180
Drum speed (r/min)	1200/1500	1080/1200	950	900	1000	850	800	720
Max. separating factor	645/1007	652/805	605	566	700	6C6	573	522
Motor power (kW)	7.5	15	18.5	18.5	18.5	30	37	55
Weight (kg)	2240	3150	4330	5150	5620	6620	7350	12140

Main Characteristics of Bag Lifting Centrifuge
1. Compliant with GMP requirements, our vertical scraper centrifuge comes with a variety of functions so as to offer reliable yet efficient operation.
2. Due to its scientific design, this top discharge centrifuge realizes excellent sealing for the bearing seat, and it simplifies discharging since finished product is loosened by the scraper.

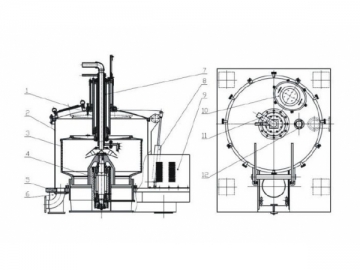

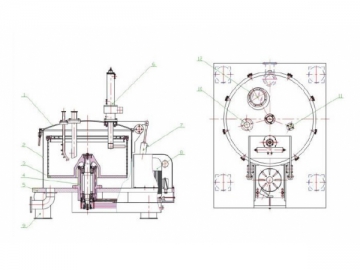

Structure of Bag Lifting Centrifuge

1. Cover
2. Housing
3. Drum (hanging bag type)
4. Bearing Seat

5. Chassis
6. Scraper
7. Cover OpeningDevice
8. Transmission Parts

9. Shock Absorber
10. Feed Pipe
11. Wash Pipe
12. Sight Glass
