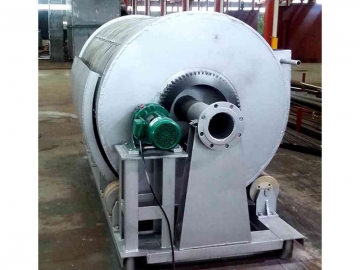

Water Treatment Microfiltration Machine

Water Treatment Microfiltration Machine
Water Treatment Microfiltration Machine
Water Treatment Microfiltration Machine
Request a Quote

Applications
The water treatment microfiltration machine (rotary filtration decontamination machine) was developed for installation in many solid-liquid separation operations, such as the filtration of urban domestic sewage, papermaking, textile industrial use, textile printing, chemical applications, and mine sewage. This equipment allows water to be reused repeatedly in a closed cycle. The machine can separate suspended particles with sizes over 0.2mm.

Design principle
The following is the principle of the water treatment microfiltration machine: Firstly, the treatment water flows from water pipe into the water distributor, and the treatment water flows from the water outlet after a short time steady flow. Secondly, the treatment water distributes over the opposite spin filter cartridge and filter screen, creating a relative shearing motion between the water flow and inner wall of the filter cartridge. Thus optimizing water flow and the solid objects can be separated. The treatment water rolls over on the deflector of the filter cartridge and is expelled on the other end of the filter cartridge. The filter water flows away from the water channel. The filter cartridge of the water treatment microfiltration machine is equipped with a washing pipe with washing water pressure (3kg/cm2). This makes sure the water washes the filter screen and ensures the filter screen maintains is effectiveness.

Parameters of the water treatment microfiltration machine
Type WN1 WN2 WN3 WN4 WN5
Filtrating area (m2) 5 7 9 11 14
The weight of filtrating waste water (T/H) 50-100 80-150 100-200 120-240 150-300
Filter cartridge rotational speed (r/min) 4-6 4-6 4-6 4-6 4-6
Washing water pressure (Mpa) 0.3 0.3 0.3 0.3 0.3
Motor power (KW) 1.1 1.5 1.5 2.2 3
Filter cartridge diameter (mm) Φ1000 Φ1250 Φ1250 Φ1500 Φ1500
Filter cartridge effective length (mm) 1500 2000 2500 2500 3000
Weight (T) 1.5 2 2.5 3 4.5
Main structures of the water treatment microfiltration machine

The water treatment microfiltration machine is a mechanical filtration device, which consists of the transmission equipment, overflow weir water distributor and flushing water equipment. In addition, the filter screen of the machine is made from high quality stainless steel.

Feature of the water treatment microfiltration machine
(1) Simple structure; steady operation; easy maintenance; Long useful life.
(2) Good ability of filtration; High efficiency; the recovery rate of the suspended solids in the waste water is over 80%.
(3) Small occupation of room; Low cost; Operating in a slow speed; automatic cleaning; easy installation.
(4) The water treatment microfiltration machine can operate full automatically and continuously, the machine does not need supervision during operation and the highest concentration of filtrating objects is more than 18%.

Customization notice of the water treatment microfiltration machine
The water treatment microfiltration machine can be customized according to the application requirements of the customer. The water flow capacity and mesh size can be adjusted accordingly.

Huaneng Jinhao manufactures water treatment equipment and domestic sewage treatment plant to global markets, with decades of experience, we can fabricate any water treatment equipment and machinery like industrial water decanter, water filtration equipment, sludge separation equipment, and the auxiliaries of water treatment equipment.
