Architectural Lighting Outdoor RGBW LED Wall Washer Light Bar Code AW-L36XCET2-DK-GK LED Lighting
Characteristics
- Lamps and lanterns is small and light, a variety of brackets and optical fittings available.
- Different power, high and low voltage optional.
- IP67 waterproof IP rating, suitable for outdoor use.
Product Parameters
| Model | AWL36XCET-DK | AWL36XCET-DK |
| Input Voltage | AC100~240V | AC24V |
| Max. Power | 36W | 36W |
| Power Factor | >0.9 | >0.9 |
| Lumen | 1512lm | 1512lm |
| Peak Beam Intensity | 1913cd(45°) | 1913cd(45°) |
| LED Quantity | 24pcs RGBW | 24pcs RGBW |
| Optical Angle | 20°, 30°, 45°, 60°, 20*45°, 10*60° | 20°, 30°, 45°, 60°, 20*45°, 10*60° |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 4 | 4 |

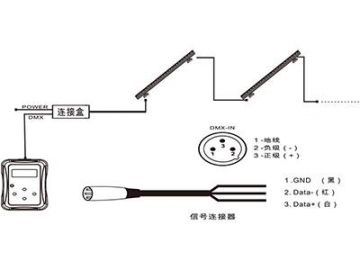

| Power Connection | Integrated power and signal cable | |
| Data Connection | ||
| IP Rating | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Extruded aluminum | Extruded aluminum |
| Housing Color | Silver | Silver |
| Dimensions | 968X50X87.4mm | 968X50X87.4mm |
| Weight | 2.1KG | 2.1KG |
Dimensions
Illumination Contours

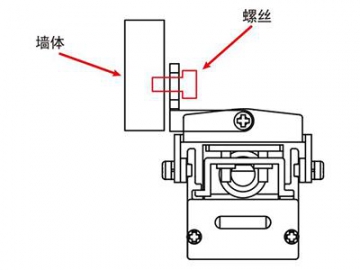

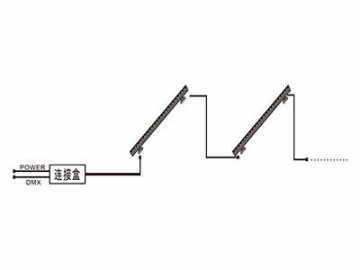

Installations
