Architectural Lighting Outdoor Linear LED Wall Washer Light Code AW-L24XCET2-DK-GK LED Lighting
Characteristics
- Lamps and lanterns is small and light, a variety of brackets and optical fittings available.
- Different power, high and low voltage optional.
- IP67 waterproof IP rating, suitable for outdoor use.
Product Parameters
Model | AWL24XCET-GK | AWL24XCET-DK |
Input Voltage | AC100-240V | AC24V |
Max. Power | 36W | 24W |
Power Factor | >0.9 | >0.9 |
Lumen | 1007.99lm | 1007.99lm |
Peak Beam Intensity | 1275.33cd(45°) | 1275.33cd(45°) |
LED Quantity | 24pcs RGBW | 24pcs RGBW |
Optical Angle | 20°, 30°, 45°, 60°, 20*45°, 10*60° | 20°, 30°, 45°, 60°, 20*45°, 10*60° |
DMX Dimming | 0-100% | 0-100% |
RTCP | DMX512, RDM | DMX512, RDM |
Controllable Sections | 4 | 4 |
Power Connection | Integrated power and signal cable | |
Data Connection | ||
IP Rating | IP67 | IP67 |
Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
-20°C~45°C (startup) | -20°C~45°C (startup) | |
Housing Material | Extruded aluminum | Extruded aluminum |
Housing Color | Silver | Silver |
Dimensions | 968X50X131mm | 968X50X131mm |
Weight | 2.3KG | 2.3KG |
Dimensions
Illumination Contours

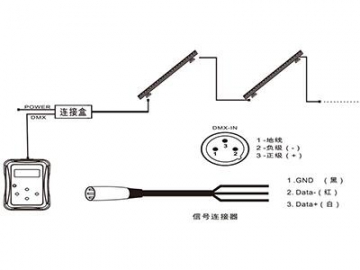

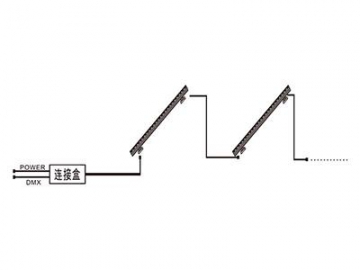

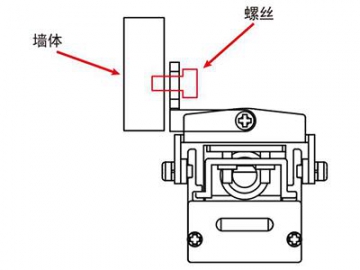

Installations
