Marine TV
Description of our TV products designed especially for marine vessels:
This TV product is designed especially for marine environments like yachts, featuring an ultra-bright, wide viewing angle.
The TV product is free from acid and alkali corrosion, which protects internal components, ensuring the TV to function safely and effectively even under extreme moisture and salinity marine environments.
Application

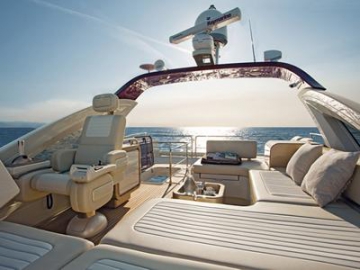

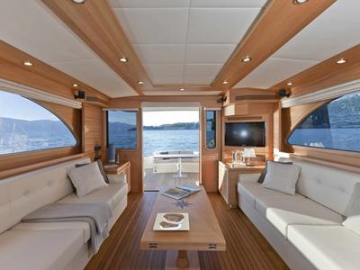

The marine TV is mainly used in yachts.
| PANEL SPEC | |||||
| MOQ | 500 | ||||
| Aspect ratio | 16:9 | ||||
| Native resolution | 1366x768 | ||||
| Contrast ratio | 1000:1 | ||||
| Brightness | 200cd/m2 | ||||
| Viewing angle | H:170°, V:160° | ||||
| Response time | 6ms | ||||
| Brand | AUO/CHIMEI etc | ||||
| COSMETIC | |||||
| Cabinet Color | black | ||||
| Desktop Base | YES | ||||
| Swivel Base | NO | ||||
| Panel Tilt | YES | ||||
| SOLUTION | |||||
| Support full USB play | YES | ||||
| Support salt erosion protection | YES | ||||
| Built-in Tuner | PAL/Secam/NTSC/ISDB-T | ||||
| Color System | PAL/Secam | ||||
| Sound System | BG,DK,I,L/L',M/N | ||||
| Support PVR | YES | ||||
| Support PIP/POP | NO | ||||
| PICTURE | |||||
| Comb Filter | 3D | ||||
| De-interlace Scan/Progressive Scan | 3D | ||||
| Tint,color,brightness,contrast,sharpness control | YES | ||||
| User Selectable Picture Control | YES | ||||
| OSD Language | Eng/Fre/Spa etc. | ||||
| SOUND | |||||
| A2/NICAM | YES | ||||
| AV Stereo | YES | ||||
| Audio output power | 2x3W | ||||
| Surround system | YES | ||||
| Tone Control (Bass/Treble/Balace) | YES | ||||
| User Selectable Sound Control | YES | ||||
| Speaker quantity and placement | YESx2 front | ||||
| USER CONVENIENCE | |||||
| Full Function Remote Control | YES | ||||
| Sleep Timer | 240Mins | ||||
| Zoom | YES | ||||
| Picture Freeze | YES | ||||
| Child Lock | NO | ||||
| Channel Swap | NO | ||||
| Channel edit | YES | ||||
| Teletext /Page | 1000 page | ||||

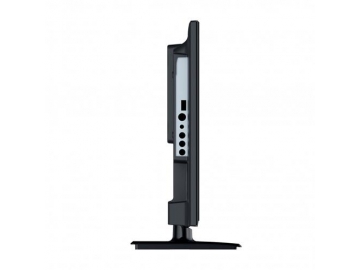

| CONNECTORS | |||||
| Coaxial out | YESx1 | ||||
| AV Input | YESx1 | ||||
| VGA Input/VGA Audio input | YES*1 | ||||
| HDMI （CEC，ARC） | YES*1 | ||||
| Headphone out | YES*1 | ||||
| YPbPr | YES*1 | ||||
| USB2.0 | YES*1 | ||||
| PC Audio input | YES*1 | ||||
| POWER SUPPLY | |||||
| Power Supply | 10-24V DC& 110-240V AC | ||||
| Power Consumption(W) | ≦30W | ||||
| Energy star (3 Watts) | < 1W | ||||
| Stability DC TO DC Power Supply | 10-24V | ||||
| BUILT-IN DVD FUNCTIONS(Optional) | |||||
| DVD | Optional | ||||
| Playback Support | YES | ||||
| USB2.0 | optional | ||||
| Card reader | optional | ||||
| DIMENSION (W*D*H) | |||||
| Packing Dimension（L*W*H）mm | 506*118*346 | ||||
| Loading Qty（40HQ） | 2622 | ||||
| ACCESSORIES | |||||
| Instruction Book | YES | ||||
| Warranty Registration Card | TBD | ||||
| Remote Control with battery | YES | ||||
| meter DC cord/card charger | YES | ||||
| REGULATORY STANDARDS | |||||
| Certificate | TBD | ||||
- The product uses unique technology to prevent acid and alkali corrosion.
- The visual angle of this product is 178°/178°, which provides a wide viewing angle and high-luminance.
- This product is equipped with a box loudspeaker, which delivers louder sound and better quality.
- The product has good shock resistant performance.
- The HDMI support functions of CEC, ARC, and MHL.
- The remote control can control the angle of the screen.
- Bluetooth and Android functions are optional.
- Range of DC voltages.
- A DVD player equipped in the marine TV.
- This product supports one-key scanning and the antenna can be remote controlled.
- Optional TV system: ATSC/DVB-T2/DVB-S2/ISDB-T

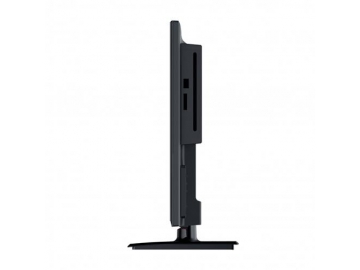

- The DVD and back cover are designed to be flat to make installation convenient.

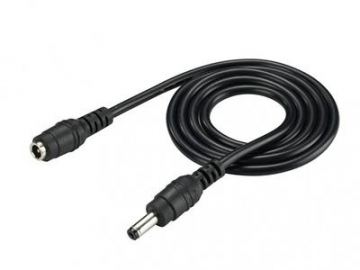

- DC wires
- Instruction Book

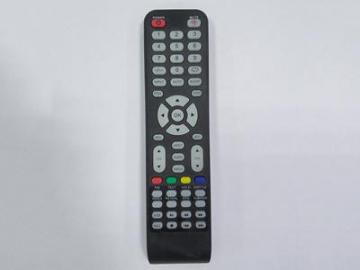

- Remote Control

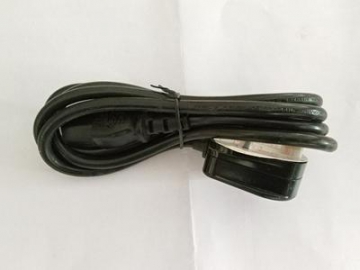

- Power Line

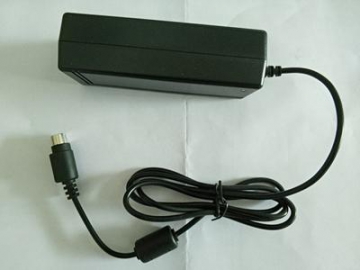

- Adapter
Assembling method
Desktop, wall-hanging
