Mirror TV
Description
The Mirror TV produced by KONTECH adopts a mirror glass design, delivering a better displaying effect and richer colors than normal TVs. The fascinating mirror design of the Mirror TV will be completely invisible and provide amazing magic mirror effects when the power is shut off. This product is the best choice for homes, hotels, beauty centers, etc.
Application

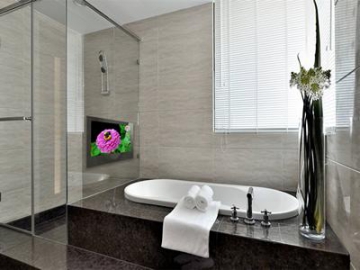

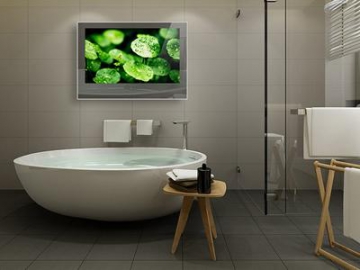

The Mirror TV is mainly used in some places requiring mirrors and screens, such as bedrooms, bathrooms, hotel lobbies, spas, beauty centers, public toilets, elevators, etc.
| Mirror TV | |||
| Version | MT13 | MT46 | |
| Applied scenes | Yacht, hotel, bathroom, sauna rooms | ||
| Ingress Protection | IP65(optional) | ||
| LCD panel | |||
| Size | 13.3 inches | 46.3 inches | |
| Display area | 294.2*165.8mm | 1021.5*576mm | |
| Display scale | 16*9 | ||
| Luminance | 300nits | ||
| Image resolution | 1920*1080 | 1920X1080 or 3840X2160 | |
| Contrast ratio | 5000*1 | ||
| View angle | 178°/178° | ||
| Response time | 8ms | ||
| Service life | 50000h | ||
| Frame | |||
| Material | Tempered glass and metals | ||
| Color | Black/white/mirror surface | ||
| Dimension of frames | Top and bottom: 21.05mm, left and right: 17.65mm | Top: 147mm; bottom220mm, left and right: 174.3mm | |
| Dimension of bare machine | 329.5*207.9*24.5mm | 1337*910*61.3mm | |
| Packaging dimension | 470*281.5*113mm | TBD | |
| Weight of bare machine | 1.1kg | 42kg | |
| Assembling method | Embedded/wall hanging | ||
| Primary hardware index | |||
| Simulative television system | PAL/SECAM/NTSC | ||
| Digital television system | ATSC/DVB-T2/DVB-S2/ISDB-T/BS/CS | ||
| Special functions of software | |||
| 1. The HDMI support functions of CEC,ARC,MHL. | |||
| Essential connector | |||
| Connectors | HDMI, DVB-T, DVBS2, RS232, AV, YPBPR | ||
| Loudspeaker | 8W*2 | ||
| Functions | |||
| Video | AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, MPG | ||
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | ||
| Picture format | JPG, JPEG, BMP, PNG, GIF | ||
| Text format | Txt | ||
| OSD language | Chinese, English, Spanish, Portuguese, Japanese, etc | ||
| Electrical Specifications | |||
| Power supply mode | DC | ||
| Power supply | AC 110V~230V | ||
| Power dissipation | 12W | TBD | |
| Working environment | |||
| Working temperature | 0℃~55℃ | ||
| Working humidity | 5%~90% RH | ||
| Storing temperature | -20℃~65℃ | ||
| Other parameters | |||
| Accessories | power line, remote control, adapter, warranty card, instruction book, etc. | ||
| Packaging material | Carton and pearl wool | ||
| rough weight | 1.3kg | 56kg | |
| OTHERS | TBD | ||
| | | ||
- The high resolution LCD panel delivers clear pictures.
- This product features an RS232 connector.
- The luminance and size of LCD screen and mirror glass can be custom-made.

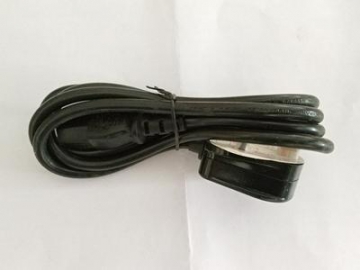

- Power Line

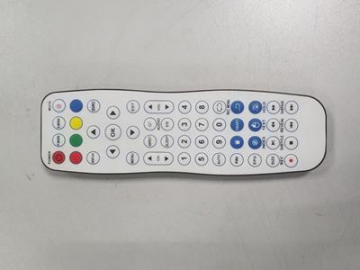

- Waterproof Remote Control

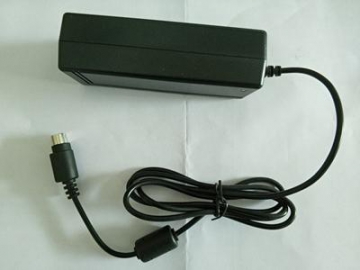

- Adapter
- Instruction Book
Assembling method
wall-hanging, embedded
