Architectural Lighting LED Pixel Light Bar Code AI771ET LED Lighting
Characteristics
- Flexible segmented control, multiple DMX channels can be selected to achieve a variety of colorful pixel effects.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
Product Parameters
| Model | AI771ET2 |
| Input Voltage | DC24V |
| Max. Power | 4.5W |
| Power Factor | >0.9 |
| Lumen | 95lm |
| Peak Beam Intensity | 35cd(120°) |
| LED Quantity | 16pcs RGB |
| Optical Angle | 120° |
| DMX Dimming | 0-100% |
| RTCP | DMX512, RDM |
| Controllable Sections | 16 |
| Power Connection | Integrated power and signal cable |
| Data Connection | |
| IP Rating | IP67 |
| Operation Temperature | -40°C~45°C (operation) |
| -20°C~45°C (startup) | |
| Housing Material | Extruded aluminum |
| Housing Color | Silver |
| Dimensions | 320X31X34.7mm |
| Weight | 0.4KG |
Dimensions
Illumination Contours

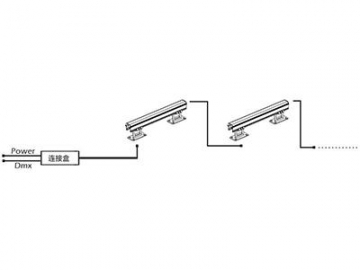

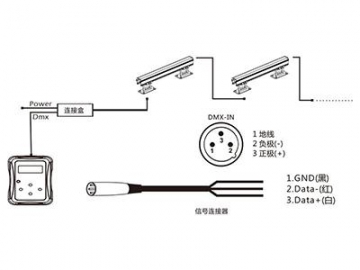

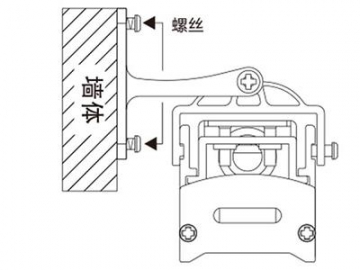

Installations
Optional Accessories
