Characteristics
  • The lamp features light weight and low power consumption, and can achieve a variety of colorful pixel effect.
  • Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
  • 0-100% 16Bit dimmer, DIM4 dimmer technology.
Product Parameters
Model AI793ET
Input Voltage DC24V
Max. Power 9W
Power Factor >0.9
Lumen 1471lm
Peak Beam Intensity 78cd(120°)
LED Quantity 16pcs RGB
Optical Angle 120°
DMX Dimming 0-100%
RTCP DMX512, RDM
Controllable Sections 1
Power Connection Integrated power and signal cable
Data Connection
IP Rating IP67
Operation Temperature -40°C~45°C (operation)
-20°C~45°C (startup)
Housing Material Die-casting aluminum
Housing Color grey(optional: white, black)
Dimensions 110X125X78mm
Weight 0.7KG
Dimensions
Illumination Contours

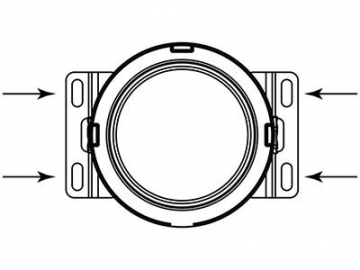

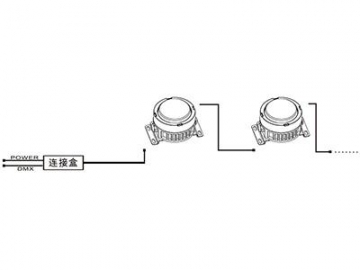

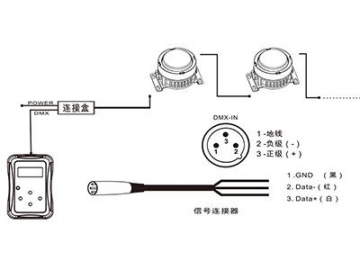

Installations
Optional Accessories
PC mask, tempered glass
