Architectural Lighting 7 LEDs Pixel LED Light Code AI791ET LED Lighting
Characteristics
- The lamp features light weight and low power consumption, and can achieve a variety of colorful pixel effect.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
Product Parameters
| Model | AI791ET |
| Input Voltage | DC24V |
| Max. Power | 5W |
| Power Factor | >0.9 |
| Lumen | 42.53lm |
| Peak Beam Intensity | 30cd(120°) |
| LED Quantity | 7pcs RGB |
| Optical Angle | 120° |
| DMX Dimming | 0-100% |
| RTCP | DMX512, RDM |
| Controllable Sections | 1 |
| Power Connection | Integrated power and signal cable |
| Data Connection | |
| IP Rating | IP67 |
| Operation Temperature | -40°C~45°C (operating) |
| -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum |
| Housing Color | grey(optional: white, black) |
| Dimensions | 111X88X68mm |
| Weight | 0.4KG |

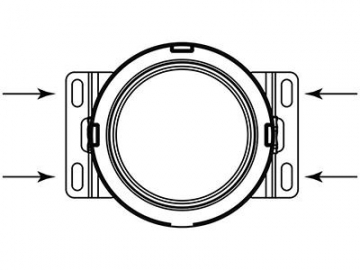

Dimensions
Illumination Contours

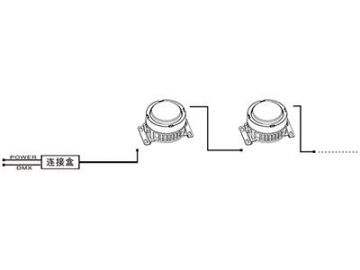

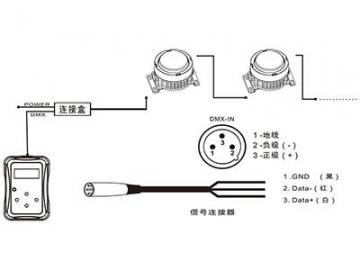

Installations
Optional Accessories
