PCD/PCBN Boring Cutter

: http://metalworking-tool.com/10-5-pcd-end-mills.html

This product has been discontinued and removed from our shelves.

Features of PCD/PCBN Boring Cutter
1. The PCD/PCBN boring cutter has good balance of performance and stability, good abrasive resistance and long service life.
2. It can guarantee high processing precision and high work efficiency.
3. The PCD/PCBN boring cutter can be used repeatedly so that it can save your cost.
4. We can manufacture various specifications of the PCD/PCBN boring cutters according to the need of our customers.

Application
The PCD boring cutter applies to different materials including copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and nonmetal materials. It can be used in the boring and precision processing of various products with different specifications, such as the processing of cast aluminum alloy pistons.
The PCBN boring cutter is used to bore and precisely process different materials, such as hardened steel, hard cast iron, grey cast iron, and iron series metal.

Technical Specifications

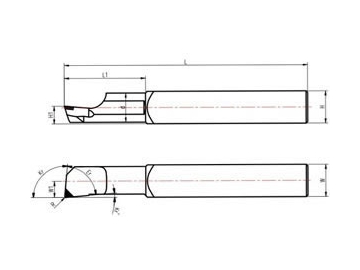

Drawings of PCD/PCBN Boring Cutter	Dimension (mm)
	Kr°	W1	H1	H	W/D	L	d	L1	Er°	R
	95	6	10	20	20	120	10	30	70	0.4
	95	6	12.5	25	25	120	10	30	80	0.4
	95	9.5	10	20	D20	120	16	30	70	0.4
	95	9.5	10	20	D20	120	16	30	90	0.4

Material
The tool bit of the boring cutters uses PCBN or PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The cutter arbor uses high quality tungsten carbide and tool steel.

As a professional PCD/PCBN boring cutter manufacturer and supplier in China, our company also provides PCD reamer, PCBN inserts, glass cutter holder, tungsten carbide supported diamond die blanks, and much more.
