Carbide Boring Cutter

: http://metalworking-tool.com/3-3-emb03-4-flutes-hrc65-carbide-cutter-bits.html

This product has been discontinued and removed from our shelves.

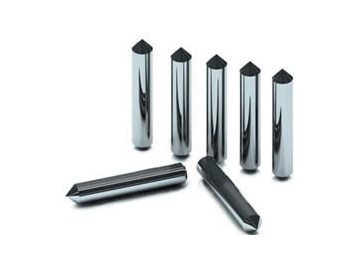

Features of Carbide Boring Cutter
1. The carbide boring cutter features high processing precision.
2. Our carbide boring cutter has a longer service life than the average hard alloy boring cutter.

Application
The carbide boring cutter is used to process hard alloy roller of various specifications.

Technical Specifications of Carbide Boring Cutter

Drawing of Carbide Boring Cutter	Dimension (mm)
Drawing of Carbide Boring Cutter	D	b	H2	L	θ°
	Φ4.5	0.9	2.7	10.7	80
	Φ4	0.8	2.4	9.55	80
	Φ4	0.7	2.4	7.83	70/80
	Φ4	0.6	2.4	7.53	85
	Φ3.2	0.6	1.92	6.42	70/80
	Φ3.2	0.6	1.92	6.19	80
	Φ2.5	0.5	1.5	5.22	70/80
	Φ2.0	0.4	1.2	4.06	80

Material
The carbide boring cutter uses high quality hard alloy material.

Our company is a carbide boring cutter manufacturer in China. We provide not only diamond engraving tool, but also PCBN inserts, PCD wheel hub turning tool, diamond scribing wheel, diamond die blank, and more.
