Waterproof IP62 Daylight White 4000K Strip Light, SMD 2835 LED

: http://ledstripsolution.us/2-8-daylight-white-4000k-strip-light.html

Key Features

Ambient Temperature: -20℃ to 45℃
Voltage: DC24V
Length/Reel(M/ft): 5m/16.4ft
Standard SMD 2835 LED strip light, 4000K natural soft lighting
Glue dispensing surface protection allows for applications indoor, outdoor or moisture environments
High-CRI 90 , allowing for revealing the natural colors of objects
High light color consistency with color tolerance within 3 SDCM
Luminous efficacy up to 100lm/W

*Please contact our sales for the latest details and certifications

Specification

Model	Led Qty	Power	Lumens per feet	Cutting increment	LED pitch	PCB width
FH05W-P2-G1 28LZ9x 24V60S W08L05	60LEDs/M	4.8W/M 1.46W/ft	340lm/M 104lm/ft	100mm 3.94inch	16.7mm 0.66inch	8mm 0.31inch
FH08W-P2-G1 28LZ9x 24V96S W08L05	96LEDs/M	7.6W/M 2.3W/ft	570lm/M 174lm/ft	62.5mm 2.46inch	10.4mm 0.41inch	8mm 0.31inch
FH10W-P2-G1 28LZ9x 24V120S W08L05	120LEDs/M	9.6W/M 2.93W/ft	700lm/M 213lm/ft	50mm 1.97inch	8.3mm 0.33inch	8mm 0.31inch
FH14W-P2-G1 28LZ9x 24V180S W10L05	180LEDs/M	14.4W/M 4.39W/ft	1100lm/M 335lm/ft	33.3mm 1.31inch	5.6mm 0.22inch	10mm 0.39inch
FH19W-P2-G1 28LZ9x 24V240S W10L05	2400LEDs/M	19.2W/M 5.85W/ft	1550lm/M 472lm/ft	25mm 0.98inch	4.2mm 0.17inch	10mm 0.39inch
FH10W-P2-G1 28HZ9x 24V60S W08L05	60LEDs/M	10W/M 3.05W/ft	810lm/M 247lm/ft	100mm 3.94inch	16.7mm 0.66inch	8mm 0.31inch
FH14W-P2-G1 28HZ9x 24V60S W10L05	60LEDs/M	14.4W/M 4.39W/ft	1080lm/M 329lm/ft	100mm 3.94inch	16.7mm 0.66inch	10mm 0.39inch
FH19W-P2-G1 28HZ9x 24V120S W10L05	120LEDs/M	19.2W/M 5.85W/ft	1590lm/M 485lm/ft	50mm 1.97inch	8.3mm 0.33inch	10mm 0.39inch

Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.

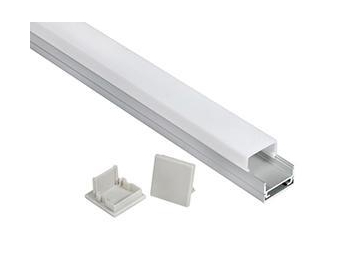

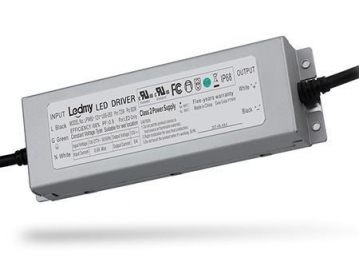

Accessories

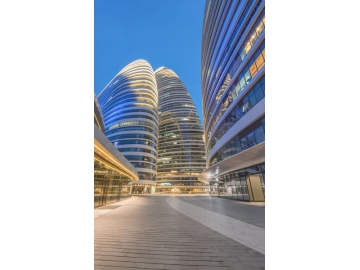

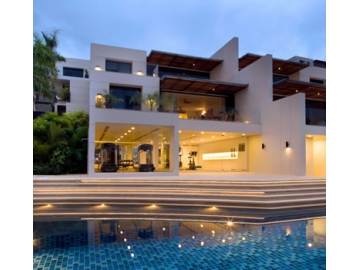

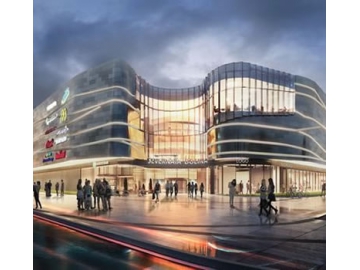

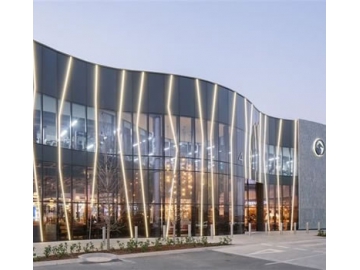

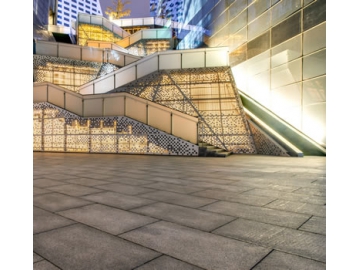

Projects
