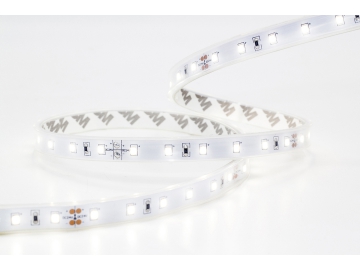

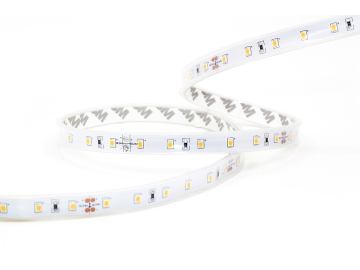

2835 SMD 4000K Waterproof IP65 LED Strip Light

2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
2835 SMD 4000K Waterproof IP65 LED Strip Light
Key Features
  • Ambient Temperature: -20℃ to 45℃
  • Voltage: DC24V
  • Length/Reel(M/ft): 5m/16.4ft
  • Standard 2835 SMD LED strip light, 4000K natural and soft white light
  • The light source is placed in a silicone tube with both ends sealed for a waterproof performance

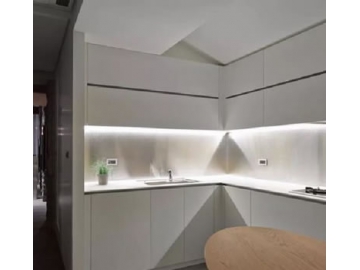

  • Suitable for indoor damp environments such as bathrooms and kitchens. Great for outdoor applications under various weather conditions
  • The silicone tube features an excellent cooling performance, allowing the strip light to work even after long term operation
  • High-CRI 90 , allowing for natural object color reveal. Color tolerance less than 3 SDCM
  • Luminous efficacy up to 100lm/W, energy saving
*Please contact our sales for the latest details and certifications
Specification

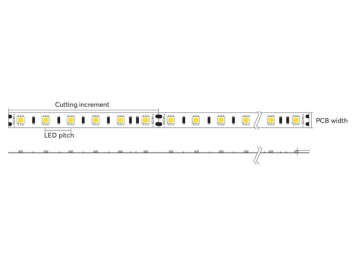

Model Led Qty Power Lumens per feet Cutting increment LED pitch PCB width
FH05W-P5-G1 28LZ9x 24V60S W08L05 60LEDs/M 4.8W/M
1.46W/ft
380m/M
116lm/ft
100mm
3.94inch
16.7mm
0.66inch
10mm
0.39inch
FH08W-P5-G1 28LZ9x 24V96S W08L05 96LEDs/M 7.6W/M
2.32W/ft
640lm/M
195lm/ft
62.5mm
2.46inch
10.4mm
0.41inch
10mm
0.39inch
FH10W-P5-G1 28LZ9x 24V120S W08L05 120LEDs/M 9.6W/M
2.93W/ft
780lm/M
238lm/ft
50mm
1.97inch
8.3mm
0.33inch
10mm
0.39inch
FH14W-P5-G1 28LZ9x 24V180S W10L05 180LEDs/M 14.4W/M
4.39W/ft
1230lm/M
375lm/ft
33.3mm
1.31inch
5.6mm
0.22inch
12mm
0.47inch
FH09W-P5-G1 28HZ9x 24V30S W08L05 30LEDs/M 8.5W/M
2.59W/ft
640lm/M
195lm/ft
166.7mm
6.56inch
33.3mm
1.31inch
10mm
0.39inch
FH10W-P5-G1 28HZ9x 24V60S W08L05 60LEDs/M 10W/M
3.05W/ft
900lm/M
274lm/ft
100mm
3.94inch
16.7mm
0.66inch
10mm
0.39inch
FH14W-P5-G1 28HZ9x 24V60S W10L05 60LEDs/M 14.4W/M
4.39W/ft
1210lm/M
369lm/ft
100mm
3.94inch
16.7mm
0.66inch
12mm
0.47inch
FH19W-P5-G1 28HZ9x 24V120S W10L05 120LEDs/M 19.2W/M
5.85W/ft
1780lm/M
543lm/ft
50mm
1.97inch
8.3mm
0.33inch
12mm
0.47inch
Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.
  • Applications
Accessories

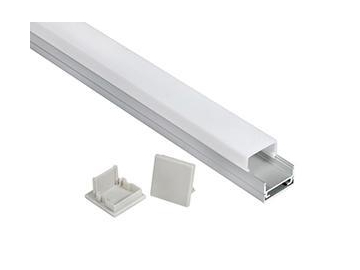

  • LED Aluminum Channel

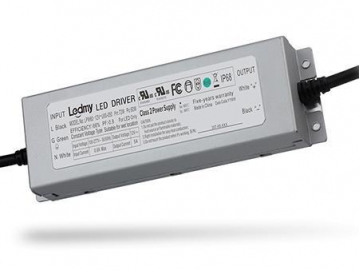

  • Waterproof LED Power Supply, Compact Series
  • LED Neon Flex Accessories
Projects

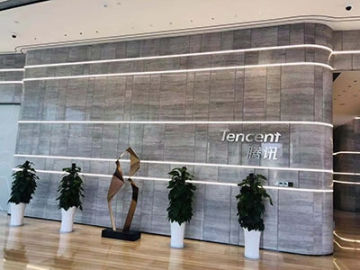

  • Tencent Innovation and Entrepreneurship Town
  • Tian Ji Bar - Ningbo Treasure Center

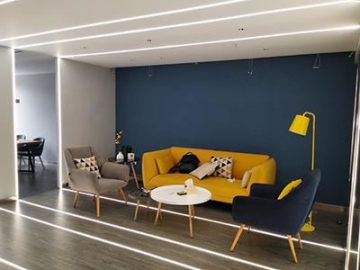

  • Office Lighting Project in Guangzhou
