Automatic Thermal Film Laminating Machine
Descriptions of Automatic Thermal Film laminating Machine SAFM
SAFM series automatic thermal film laminating machine is a compound machine aiming to thermal film.
The electrical devices are controlled by PLC system, and the heating roller is heated up through the circulation of heated oil in order to insure the accuracy of laminating temperature. The whole machine is in compact structure and has high degree of automatization and humanity operation.
The machine is suitable for large and medium scale laminating enterprises.
Composition of Automatic Thermal Film laminating Machine SAFM

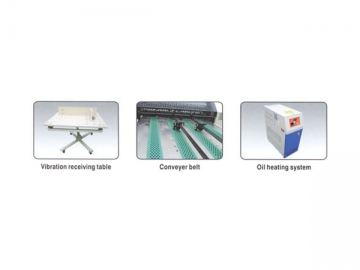

This machine is mainly composed of paper feeding system, laminating system, and paper separating system.
| Model | 800 | 1000 |
| Max. Paper Dimension | 780×1040mm | 1040×780mm |
| Min. Paper Dimension | 300×400mm | 300×400mm |
| Paper Thickness | 125-500g/m2 | 125-500g/m2 |
| Max. Laminating Speed | 0-40m/min | 0-40m/min |
| Machine weight | 1500kg | 1800kg |
| Machine dimension | 4800×1650×1700mm | 4800×1650×1700mm |
