MIG Welding Machine, DC MIG Welder
Main Parameters
Applicable Welding Wire Diameter: FCAW (Flux Cored Arc Welding), 0.6/0.8/0.9mm
Applicable Power Supply: Single Phase
Rated Input Voltage: 115V
Rated Input Power: 2.1kW/2.8kW
Rated Input Current: 19.3A/24.8A
Open Circuit Voltage: 40V
Protection Class: IP23
Insulation Class: H
Cooling System: Forced air cooling
Our DC series MIG welding machine is designed to work with a DC power supply power frequency, ensuring a stable arc and neat and beautiful weld bead. As small as it is, it is designed with a welding wire reel of 1kg. In addition, the MIG welder is portable, making it suitable for connecting important items or materials such as pressure vessels or structural alloy steel.
Features- Our DC series MIG welding machine utilizes a DC power supply, which improves energy efficiency, ensures an easy arc striking and stable arc and prevents arc extinction.

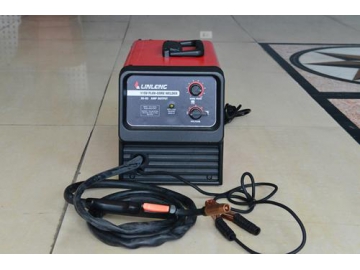

- Our MIG welding machine comes with a welding torch and wire feed unit, thus saving customer costs incurred in purchasing all needed accessories.
- The MIG welding machine is designed with overvoltage, overcurrent, and overheat protection functions in order to ensure a safe operation and prolong the service life.

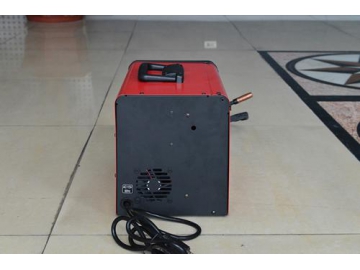

- It also features a small volume and light weight, and the movable handle installed on the top makes it easy to carry.
| Model | MIG85DC | MIG100DC | MIG140DC |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Rated Input Voltage | 1P~115V | 1P~115V | 1P~115V |
| Rated Input Power | 2.1KW | 2.1KW | 2.8KW |
| Rated Input Current | 19.3A | 19.3A | 24.8A |
| Duty Cycle (40°C 10min) | 20%70A, 100%31A | 20%70A, 100%31A | 20%90A, 100%40A |
| Voltage at no load | 40V | 40V | 40V |
| Rated Output Current Range | 30-70A | 30-90A | 30-140A |
| Efficiency | Above 80% | Above 80% | Above 80% |
| Power Factor | 0.73 | 0.73 | 0.73 |
| N.W | 17.5KG | 19.0KG | 30.0KG |
| G.W. | 19.5KG | 21.5KG | 32.0KG |
| Packing Dimension | 515×280×385mm | 515×280×385mm | 640×350×425mm |
Customization
The appearance, welding current, product manuals and packaging of the MIG welding equipment can be customized according to customer requirements.
- Mask
- Hammer Brush
- Welding Wire Reel
- Wrench
