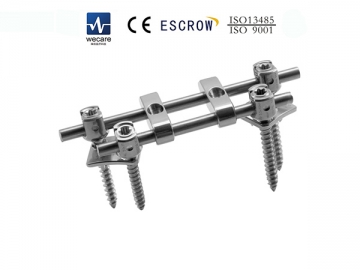

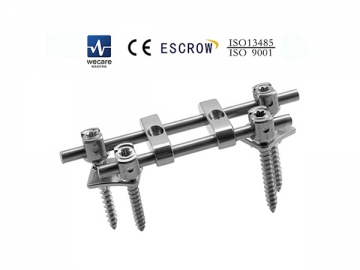

The KSS-II5.5 is an anterior fixation system that uses low-profile cancellous screws to assist in spinal fusion surgery. Trapezoidal threads on the screw minimize external radial load felt by the screw head, preventing spinal segments from slipping all the while securing bones tightly in place.
KSS-II5-5mm Anterior Fixation System

Enlarged root diameter reduces the risk of screw breakage. Friction fit washer sticks tightly to the spinal segments to be fixated. Unique torx head design prevents slipping as surgeons tighten the screw into the pedicle.

Technical Specifications of Anterior Fixation System
Product name Material Diameter (mm) Length (mm) Product No.
KSS 5.5 Pedicle screw with open tulip head Titanium alloy 4.0 25 6214025
30 6214030
4.5 30 6214530
35 6214535
5.0 30 6215030
35 6215035
40 6215040
5.5 30 6215530
35 6215535
40 6215540
6.0 35 6216035
40 6216040
45 6216045
50 6216050
6.5 35 6216535
40 6216540
45 6216545
50 6216550
55 6216555
7.0 35 6217035
40 6217040
45 6217045

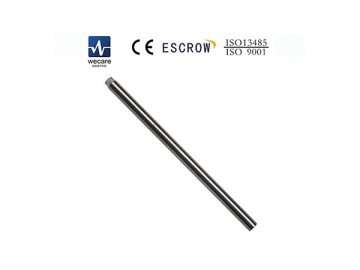

Technical Specifications of Anterior Fixation System
Product name Material Diameter (mm) Length (mm) Product No.
Rod Titanium alloy 5.5 60-120 (minimum increment of 10mm) 6240060-120
140-360 (minimum increment of 20mm) 62401140-360

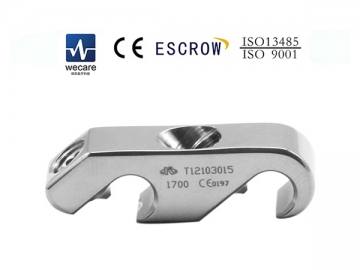

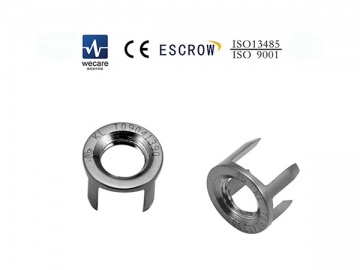

Technical Specifications of Anterior Fixation System
Product name Material Diameter (mm) Length (mm) Product No.
Double Rod Washer Pure titanium Headward (small/medium/large) 6270001
6270002
6270003
Tailward (small/medium/large) 6270011
6270012
6270013
Technical Specifications of Anterior Fixation System
Product name Material Diameter (mm) Length (mm) Product No.
Anterior cross connector Titanium alloy 5.5 13 6260013
14 6260014
15 6260015
16 6260016
17 6260017
18 6260018
Technical Specifications of Anterior Fixation System
Product name Material Diameter (mm) Length (mm) Product No.
Single Rod Washer Titanium alloy
6280000
