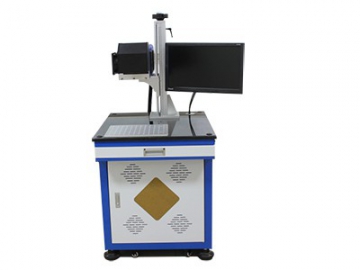

CO2 Glass Tube Laser Marking Machine
CO2 laser marker is used for engraving non-metallic materials including cardboard, board, leather. It also can be used for cutting and hollow carving very thin materials.
This machine use DC laser tube which is very cost-effective. It uses water cooling so you should take measure to prevent frost damage in cold environment.
This machine can be widely used in various industries for manufacturing packing boxes, packaging bags, films, food cans, drink bottles, cables, pipes, glasses, electronic components, communication devices, etc.
Applicable materials:
Wooden product, paper, leather, cloth, denim, plexiglass, epoxy resin, acrylic, unsaturated polyester resin, etc.
- CO2 laser marker has high quality laser beam and long service life.
- High-speed scanning galvanometer mirror system ensures its high precision.
- This machine has a human-oriented operation system and compatible with various graphic formats.
| Model | DF-100 |
| Laser source | RECI |
| Laser power (W) | 100W |
| Marking scope（mm） | 200*200, 300*300, 400*400, 600*600, 800*800 |
| Marking speed | ≤8000mm |
| Minimum character | 0.4mm |
| Marking depth | ≤5MM |
| Repeat position accuracy | ±0.01MM |
| Cooling type | Water cooling system |
| Acceptable graphic format | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
| Operating voltage | AC 110/220V±10%, 50/60Hz |
| Operating temperature range | 10-35 ℃ |
| Operating humidity | < 75% (non-condensing water) |
| Dimensions | 2400*1100*1600mm |
| Machine power | < 1250W |
| IP rating | IP54 |
| Laser safety class | Class IV |
