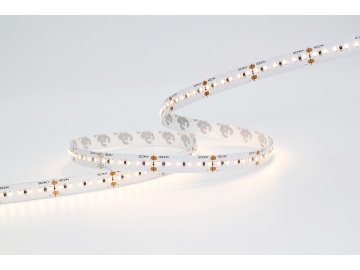

Non-Waterproof SMD 2835 Cool White LED Strip Light

Non-Waterproof SMD 2835 Cool White LED Strip Light
Non-Waterproof SMD 2835 Cool White LED Strip Light
Non-Waterproof SMD 2835 Cool White LED Strip Light
Non-Waterproof SMD 2835 Cool White LED Strip Light
Non-Waterproof SMD 2835 Cool White LED Strip Light
Non-Waterproof SMD 2835 Cool White LED Strip Light
Non-Waterproof SMD 2835 Cool White LED Strip Light
: http://ledstripsolution.us/3-1-non-waterproof-cool-white-led-strip-light.html
Key Features
  • Ambient Temperature: -20℃ to 45℃
  • Voltage: DC24V
  • Length/Reel(M/ft): 5m/16.4ft
  • Standard SMD 2835 LED strip lights, IP20 rated, suitable for dry indoor lighting
  • 4000-6000K cool white light ensures brighter lighting effects, ideal for commercial applications
  • CRI 90 , allowing for perfect illumination of original object colors
  • Luminous efficacy up to 100lm/W
  • High color consistency with color tolerance within 3 SDCM
*Please contact our sales for the latest details and certifications
Specification
Model Led Qty Power Lumens per feet Cutting increment LED pitch PCB width
5000K 6000K
FH05W-P0-G1 28LZ9x 24V60S W08L05 60LEDs/M 4.8W/M
1.46W/ft 		134lm/ft 131lm/ft 100mm
3.94inch 		16.7mm
0.66inch 		8mm
0.31inch
FH08W-P0-G1 28LZ9x 24V96S W08L05 96LEDs/M 7.6W/M
2.32W/ft 		220lm/ft 213lm/ft 62.5mm
2.46inch 		10.4mm
0.41inch 		8mm
0.31inch
FH10W-P0-G1 28LZ9x 24V120S W08L05 120LEDs/M 9.6W/M
2.93W/ft 		274lm/ft 268lm/ft 50mm
1.97inch 		8.3mm
0.33inch 		8mm
0.31inch
FH14W-P0-G1 28LZ9x 24V180S W10L05 180LEDs/M 14.4W/M
4.39W/ft 		433lm/ft 421lm/ft 33.3mm
1.31inch 		5.6mm
0.22inch 		10mm
0.39inch
FH19W-P0-G1 28LZ9x 24V240S W10L05 240LEDs/M 19.2W/M
5.85W/ft 		540lm/ft 524lm/ft 25mm
0.98inch 		4.2mm
0.17inch 		10mm
0.39inch
FH09W-P0-G1 28HZ9x 24V30S W08L05 30LEDs/M 8.5W/M
2.59W/ft 		220lm/ft 213lm/ft 166.7mm
6.56inch 		33.3mm
1.31inch 		8mm
0.31inch
FH10W-P0-G1 28HZ9x 24V60S W08L05 60LEDs/M 10W/M
3.05W/ft 		305lm/ft 302lm/ft 100mm
3.94inch 		16.7mm
0.66inch 		8mm
0.31inch
FH14W-P0-G1 28HZ9x 24V60S W10L05 60LEDs/M 14.4W/M
4.39W/ft 		412lm/ft 402lm/ft 100mm
3.94inch 		16.7mm
0.66inch 		10mm
0.39inch
FH19W-P0-G1 28HZ9x 24V120S W10L05 120LEDs/M 19.2W/M
5.85W/ft 		601lm/ft 585lm/ft 50mm
1.97inch 		8.3mm
0.33inch 		10mm
0.39inch
Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.
  • Applications
Accessories
  • LED Aluminum Channel
  • Waterproof LED Power Supply, Compact Series
  • LED Neon Flex Accessories
Projects
  • Tencent Innovation and Entrepreneurship Town
  • Tian Ji Bar - Ningbo Treasure Center
  • Office Lighting Project in Guangzhou
