Non-waterproof SMD 2835 Digital IC Cool White LED Strip Light
Key Features
- Ambient Temperature: -20℃ to 45℃
- Voltage: DC24V
- Length/Reel(M/ft): 5m/16.4ft
- TM-30-15, CRI 80 , Rf>95, Rg ≥100 allows objects to reflect and display colors similarly to natural light
- Constant current IC chips allows for a lower voltage drop and uniform lighting through the whole strip light
- 5000-6000K cool white light provides brighter lighting effects
- Dustproof, best for indoor applications
- High color consistency with color tolerance within 5SDCM
Specification
| Model | Led Qty | Power | Lumens per feet | Cutting increment | LED pitch | PCB width | |
| 5000K | 6000K | ||||||
| FP14W-P0-G1 28HX8x 24VC80S W10L05 | 80LEDs/M | 14.4W/M 4.39W/ft | 665lm/ft | 652lm/ft | 100mm 3.94˝ | 12.5mm 0.49˝ | 10mm 0.39˝ |
| FP20W-P0-G1 28HX8x 24VC160S W10L05 | 160LEDs/M | 20W/M 6.1W/ft | 963lm/ft | 939lm/ft | 50mm 1.97˝ | 6.25mm 0.25˝ | 10mm 0.39˝ |
| FP10W-P0-G1 28HZ9x 24VC60S W10L05 | 60LEDs/M | 9.6W/M 4.39W/ft | 341lm/ft | 329lm/ft | 100mm 3.94˝ | 16.7mm 0.49˝ | 10mm 0.39˝ |
- Applications
Accessories

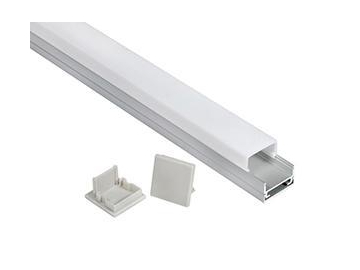

- LED Aluminum Channel

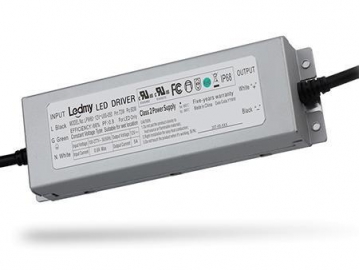

- Waterproof LED Power Supply, Compact Series
- LED Neon Flex Accessories
Projects

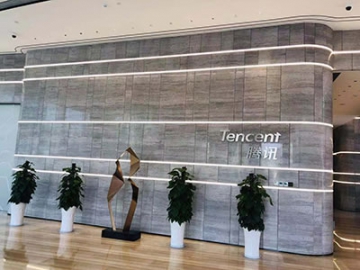

- Tencent Innovation and Entrepreneurship Town

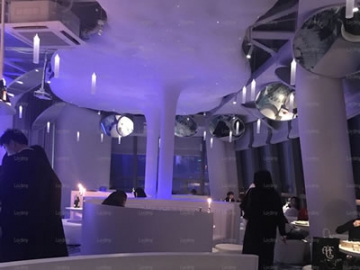

- Tian Ji Bar - Ningbo Treasure Center
- Office Lighting Project in Guangzhou
