LS0812 Furniture Lighting Fixture
Request a Quote
Features
- With ultra narrow and thin size, this lighting fixture can be flexibly applied to a variety of narrow spaces.
- The main body of this light fixture is made of high quality AL6063-T5 aluminum and is conducted ultra-precision surface treatment, with excellent heat dissipation performance.
- With professional optical design, the light source plate, PC diffuser and the inner structure of the profile can be perfectly matched to produce homogeneous and soft lights.
- The end cap can be fixed without screw, making the installation and maintenance extremely convenient.
- There are optional end caps with or without holes.

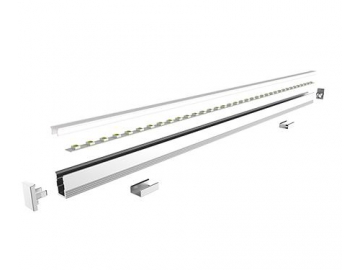

Aluminium profile components
Photoelectrics accessories
Optional accessories

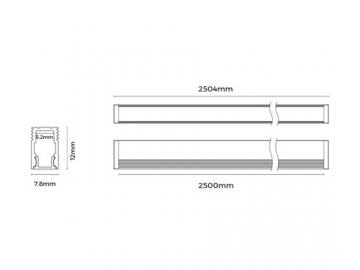

Cutting size
The free cutting size of the profile:
Lmin = (1×50mm) +(2×2mm) +10mm ①=64mm
Lmax = (49×50mm) +(2×2mm) +10mm ① =2464mm
Recommended grooving size:
W=9mm, H=12.5mm
① is used for outgoing lines.
