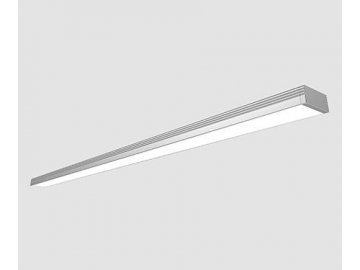

LS1607 Furniture Lighting Fixture
Request a Quote
Features
- This profile is of ultra narrow and thin size to apply to a variety of narrow spaces.
- The main body of this lighting fixture uses high quality AL6063-T5 aluminum and ultra-precision surface treatment process, so it is of excellent heat dissipation performance.
- By professional optical design, the light source plate, PC diffuser and the inner structure of the profile are in perfect match to produce homogeneous and soft lights.
- The end cap can be fixed without screw to have convenient installation and maintenance. And the end caps are optional with or without holes.
- By cooperating with "90° mounting clip", "45°mounting clip", "0-180°mounting clips" and other fixed clips, the light angel can be adjusted arbitrarily.

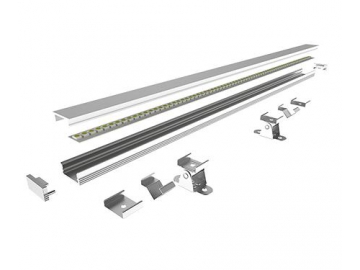

Aluminium profile components
Photoelectrics accessories
Optional accessories

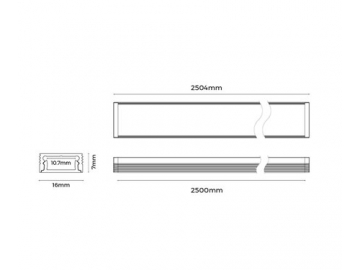

Cutting size
The free cutting size of the profile:
Lmin = (1×20mm) +(2×2mm) +8mm ①=32mm
Lmax = (124×20mm) +(2×2mm) +8mm ① =2492mm
Recommended grooving size:
W=17mm, H=7.5mm
① is used for outgoing lines.
