Introduction

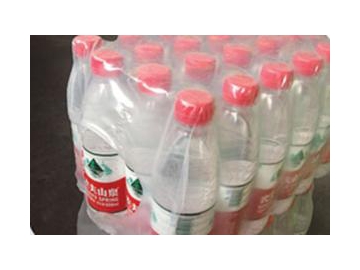

The shrink sleeve wrapping machine, combined with an automatic labeling machine, heat shrink wraps a variety of cases and bottles, regardless of if they have a bottom tray or not. Some examples include zip-top cans, alkaline mineral water bottles, bottled beer, glass bottles, and other beverages. It is especially suitable for wrapping multiple rows of bottles and cases in a variety of industries. The best film to use in this machine is PE heat shrink film.

Parameters
Power supply 380V 50-60HZ 3Phase
Maximum product size 320(L)X150(W)X200(H)mm
Speed 25 case/min
Film type PE heat shrink film
Maximum film size 400mm(w)X280mm(outside dia.)
Total power 9.5KW
Shrink tunnel size 1200mm(L) (inlet) 450 (W) x220(H)mm
Conveyor speed 40m/min (adjustable)
Minimum Air pressure 0.5Mpa(5bar)
Machine weight 600kg
Features
  • Using the KXJ-600B shrink sleeve wrapping machine, operators need only place the products on the conveyor belt, then the machine carries out collating, sealing and cutting, and shrinking, thus ensuring a high efficiency and low workload.
  • The KXJ-600B shrink sleeve wrapping machine uses PTFE-coated alloy blades for an outstanding cutting effect, eliminating any blade sticking.
