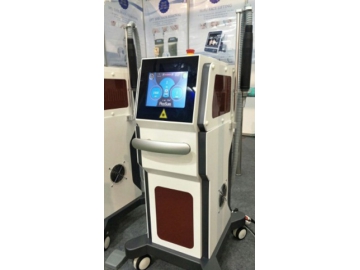

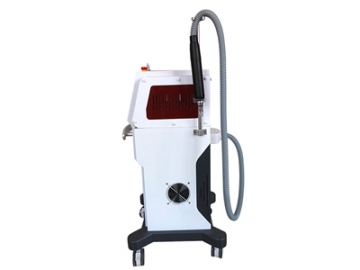

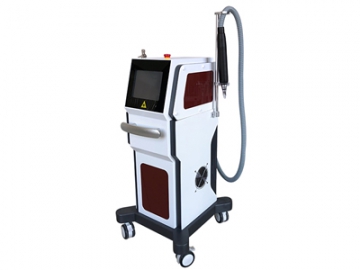

Vertical Picotech Nd YAG Laser Machine
The Picotech was the first picosecond laser to provide pulsed energy within 100 femtoseconds. Unlike traditional lasers, which simply heat pigment in the skin, these short pulses break down pigment into tiny particles. Therefore, the Picotech Nd YAG laser machine is more efficient to remove tattoo inks, especially blue and green colors, which are difficult to remove with conventional lasers.
The laser is intense enough to remove tattoo inks despite it might being much more powerful than necessary. But the energy is so concentrated that it won't cause significant effect to the skin around the tattoo, which makes it safer.
- Model A
- Model A
- Model A
- Model A
- Model B
- Model B
- It is equipped with an independent cooling system, which enables the machine to work for more than six hours continuously to meet the requirements of long-term treatments.
- It can accurately locate the target tissue for treatment, making it more effective and safer to remove tattoos and pigments.
- The laser energy is controlled by computer throughout the whole process to ensure its stable performance, thus reducing the risk of skin damage.
- The 10.4-inch real color touch screen is adopted to make it easier to understand and operate the equipment.
- The laser machine has reduced the process of tattoo and pigment removal from 5~10 times to 2~4 times, which greatly shortens the treatment time.

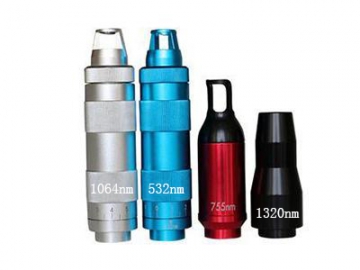

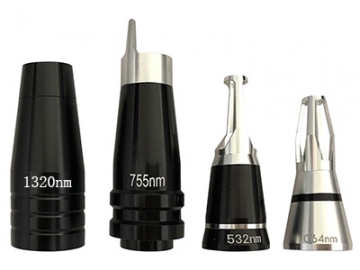

① 1320nm in wavelength
It is used in skin whitening and rejuvenation.
② 1064nm in wavelength
It can be used in removing spots, birthmarks and tattoos which are black and blue, including semi-permanent makeup.
③ 755nm in wavelength
It is used in blue and green tattoo removal.
④ 532nm in wavelength
It is used in removing red and brown pigments on the skin, including birthmarks, spots or tattoos.
- Applicable only to model A
- Applicable only to model B
| Laser Type | Pico ND:YAG Laser |
| Cooling | Water cooling and fans cooling |
| Spot Size | Φ1-9mm (continuously adjustable) |
| Energy | 100MJ--2500MJ |
| Power Supply | AC10A, 220V/50Hz AC10A, 110V/60Hz |
| Aim Beam | Semiconductor 650nm Red Aiming Beam |
| Wavelength | 755nm.1064nm, 532nm,1320nm |
| Pulse Width | Within12ns |
| Repetition Rate | 1-10Hz |
| Input Power | 500W |
