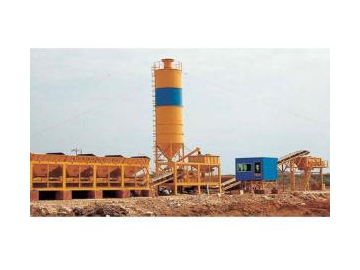

Stabilized Soil Mixing Plant
Feature of Stabilized Soil Mixing Plant

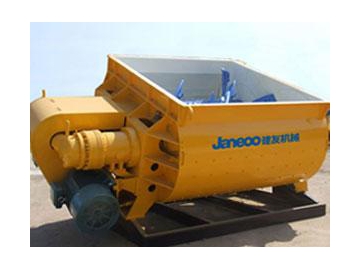

1. Adopting double horizontal shaft continuous mixer;
2. With the electronic scale to measure;
3. Equipped with industrial computer for automatic control and it can be operated manually or automatically;
4. The modular structure facilitates the installation of transportation;
5. The batching plant is equipped with electronic belt scale and electronic screw scale;
6. The water supply system adopts turbine flow transducer;
7. Can realize the containerized transport.
Application of Stabilized Soil Mixing Plant
This is special mixing plant for achieving the continuous even mixing of a variety of stabilized road base materials which has the high matching accuracy (in accordance with the requirements of raw materials), so it is widely used in the construction fields of road, airport, dock and other stabilized road base material construction project.
| Model | WCQ300H | WCQ500H | WCQ600H | ||
| Theoretical productivity (t/h) | 300 | 500 | 600 | ||
| Mixer | Power (kw) | 2 x 22 | 2 x 30 | 2 x 37 | |
| Aggregate size (mm) | ≤50 | ≤50 | ≤50 | ||
| Aggregate bin | Volume (m3) | 9 | 9 | 9 | |
| Belt conveyer capacity (t/h) | 400 | 600 | 700 | ||
| Weighing scope and weighing precision | Aggregate (kg) | ±2% | ±2% | ±2% | |
| Cement (kg) | ±1% | ±1% | ±1% | ||
| Water (kg) | -1%~ 2% | -1%~ 2% | -1%~ 2% | ||
| Total Power (kw) | 103 | 123 | 143.5 | ||
| Discharging height (m) | 3.6 | 3.6 | 3.6 | ||
Note: The above parameters are subject to change without prior notice.
