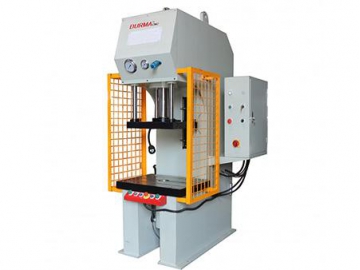

Single Column Hydraulic Press

: http://cnc-lasercutting.com

The multifunctional single column hydraulic press features a high toughness, high speed and guiding performance, allowing it to be used in the correction of axis and profiles, press fitting for liners and axis, bending, coining, and covering and stretching of simple gadgets. This machine type is also used to press powders ad plastics with low accuracy requirements, and is often used in machine tool manufacturing, internal combustion engines, light textile machinery, axis, washing machines, motors, air conditioners, and more.

Features

The welded machine features an open structure to ensure the machine body remains durable and has enough operation space.

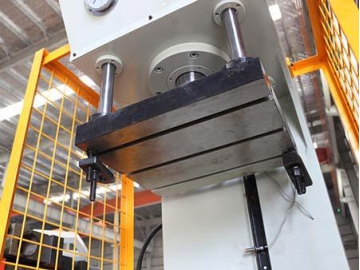

With 4 guide rods, this machine is highly precise. The stand column and piston rod feature an excellent abrasion resistance and roughness through the copper plating and chrome plating treatments.

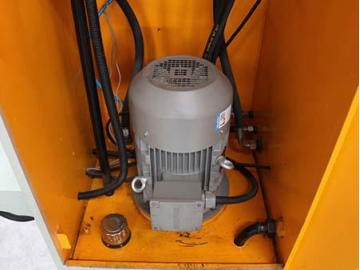

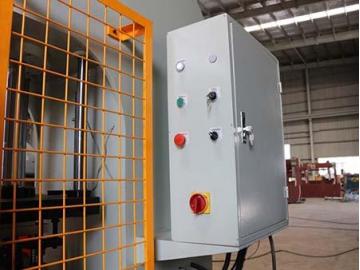

With a separated hydraulic system and electrical control system, this machine is controlled by setting the position and pressure.
The oilway uses an imported high-pressure hose to reduce machine noise. The unique filtration mechanism ensures oil pump and valve service lives.

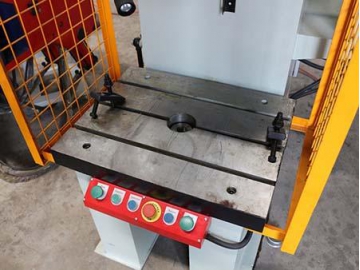

An adjustable press head can be equipped as a manual operation mechanism. The upper worktable can carry out pressing in a variety of position ranges, and the machine allows for an adjustment of the speed and moving route at any time during production.
We offer customized products, and equip this equipment with advanced PLC, grating protection, a touch screen, and other components.

Parameters

Y41				Unit
Nominal Pressure				KN	200	300	400	600	800	1000
Hydraulic Cushion		Capacity		KN	800	100	120	150	350	400
(Optional)		Stroke		mm	120	120	120	140	150	150
Max.Pressure				Map	12.8	16	22.2	24.3	25.8	25.8
Max.Opening Height				mm	500	550	600	630	720	800
Slide Stroke				mm	350	350	400	500	500	500
Accuracy Error Range Between Tables				mm	±0.01
Speed of Slide	Return Speed			mm/sec	70	75	70	80	80	80
	Working Speed			mm/sec	5~8	10~15	4~8	8~10	4~6	8~12
	Advance Speed			mm/sec	55	50	55	65	60	65
Throat depth				mm	280	300	320	350	350	350
Dimensions of Die Table			F.B.	mm	500	500	550	620	650	650
Dimensions of Die Table			L.R.	mm	600	600	700	700	700	800
Ram Table Dimensions			F.B.	mm	350	350	380	450	450	480
Ram Table Dimensions			L.R.	mm	450	450	500	500	550	600
Worktable Height				mm	710	710	710	720	730	730
Work Table Opening Diameter				mm	Φ100	Φ100	Φ100	Φ140	Φ150	Φ150
Hydraulic cylinder diameter				mm	Φ125	Φ140	Φ150	Φ180	Φ200	Φ250
Motor Power				Kw	4	4	5.5	7.5	7.5	7.5
Overall Dimension	L.R.			mm	1050	1100	1250	1450	1500	1550
	F.B			mm	650	650	780	800	950	1050
	Height			mm	2100	2150	2300	2500	2560	2800
Machine Weight				Kgs	1700	2200	3100	4600	5300	6800

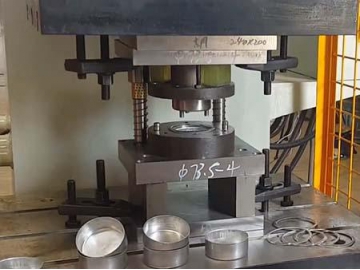

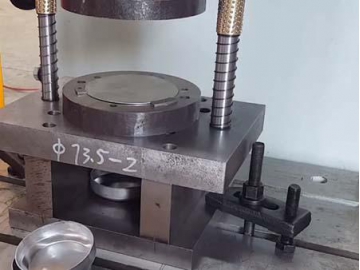

Samples
