1C9/1D9 90° Metric Male 24° Hose Adapter, DIN Standard
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric male 24° hose adapter, DIN standard
- Carbon steel metric male 24° hose adapter, DIN standard

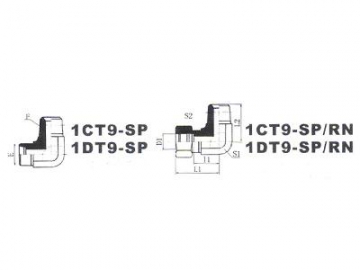

| Part No. | Thread | Tube O.D | Dimensions | |||||
| E | F | D1, D2 | I1,I2 | L1,L2 | S1 | S2,S3 | ||
| 1C9-12 | M12×1.5 | M12×1.5 | 6 | 12 | 27 | 11 | 14 | |
| 1C9-14 | M14×1.5 | M14×1.5 | 8 | 14 | 29 | 14 | 17 | |
| 1C9-16 | M16×1.5 | M16×1.5 | 10 | 15 | 30 | 16 | 19 | |
| 1C9-18 | M18×1.5 | M18×1.5 | 12 | 17 | 32 | 19 | 22 | |
| 1C9-22 | M22×1.5 | M22×1.5 | 15 | 21 | 36 | 22 | 27 | |
| 1C9-26 | M26×1.5 | M26×1.5 | 18 | 23.5 | 40 | 27 | 32 | |
| 1C9-30 | M30×2 | M30×2 | 22 | 27.5 | 44 | 30 | 36 | |
| 1C9-36 | M36×2 | M36×2 | 28 | 30.5 | 47 | 36 | 41 | |
| 1C9-45 | M45×2 | M45×2 | 35 | 34.5 | 56 | 48 | 50 | |
| 1C9-52 | M52×2 | M52×2 | 42 | 40 | 63 | 55 | 60 | |
| 1D9-14 | M14×1.5 | M14×1.5 | 6 | 16 | 31 | 14 | 17 | |
| 1D9-16 | M16×1.5 | M16×1.5 | 8 | 17 | 32 | 16 | 19 | |
| 1D9-18 | M18×1.5 | M18×1.5 | 10 | 17.5 | 34 | 19 | 22 | |
| 1D9-20 | M20×1.5 | M20×1.5 | 12 | 21.5 | 38 | 19 | 24 | |
| 1D9-22 | M22×1.5 | M22×1.5 | 14 | 22 | 40 | 22 | 27 | |
| 1D9-24 | M24×1.5 | M24×1.5 | 16 | 24.5 | 43 | 24 | 30 | |
| 1D9-30 | M30×2 | M30×2 | 20 | 26.5 | 48 | 30 | 36 | |
| 1D9-36 | M36×2 | M36×2 | 25 | 30 | 54 | 36 | 46 | |
| 1D9-42 | M42×2 | M42×2 | 30 | 35.5 | 62 | 41 | 50 | |
| 1D9-52 | M52×2 | M52×2 | 38 | 41 | 72 | 55 | 60 | |
