TH-60 Hydraulic Piling Rig
As a reliable piling rig manufacturer in China, SINOVO International Company mainly produces hydraulic piling rigs, which can be used together with hydraulic pile hammer, multi-purpose pile hammer, rotary piling rig, and CFA pile drilling equipment.

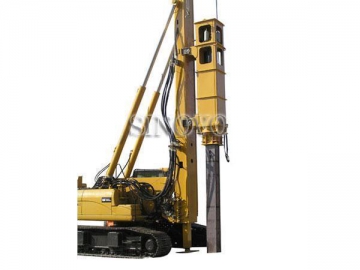

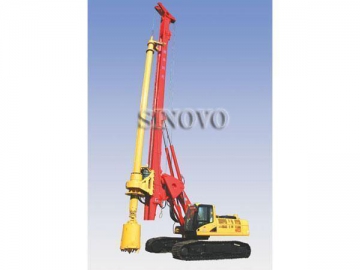

Our TH-60 hydraulic piling rig is a newly-designed construction machine that is widely used in the construction of highways, bridges, and buildings etc. It is based on Caterpillar undercarriage and consists of a hydraulic impact hammer which includes hammer, hydraulic hoses, power pack, bell driving head.
This hydraulic piling rig is a reliable, versatile and durable machine. Its max. pile diameter is 300mm and the max. pile depth is 20m per impacting, which allows our piling rig to suit requirements of many foundation engineering projects.
As a result of modular design of their components, our piling rigs are convenient to transport. Besides, our years of extensive field-testing also helps us to achieve the optimal layout of rig components. Our hydraulic piling rigs can be used in a variety of applications when fitted with the following devices:
- different types of mast, each with different extension pieces and components
- different models of rotary heads with optional hydraulic rotary drilling, pile hammer, auger
- service winch
| Technical Parameters | ||
| EURO Standards | U.S. Standards | |
| Construction method of the pile drummer | CFA construction method | CFA construction method |
| The weight of hammer core | 5000kg | 11023lb |
| The journey of hammer body(adjustable) | 200-1200mm | 7.9-47inch |
| Max beat power | 60KJ | 60KJ |
| Beat frequency (adjustable) | 30-80times/minute | 30-80times/minute |
| Max piledriving length | 16m | 52.5feet |
| Max piledriving | 400*400mm | 15.7-15.7inch |
| Max drilling depth | 20m | 65.6feet |
| Drilling diameter | 300mm | 11.8inch |
| Max drilling torque | 60KN.m | 44254lbf.ft |
| Drilling speed | 6-23rpm | 6-23rpm |
| Max pull-down force | 170kn | 38218lbf |
| Engine model | C7 STH | C7 STH |
| Rated power | 186KW | 249hp |
| Main winch pull force(the first layer ) | 170kn | 38218lbf |
| Auxiliary winch pull force(the first layer) | 110kn | 24729lbf |
| Chassis length | 4940mm | 194.5inch |
| Track shoe width | 800mm | 31.5inch |
| Undercarriage | CAT325D | CAT325D |
| Total weight | 39T | 85980lb |
