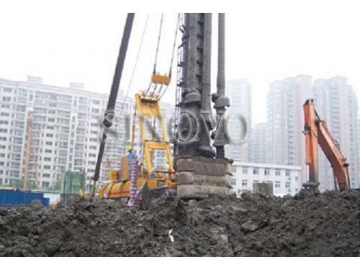

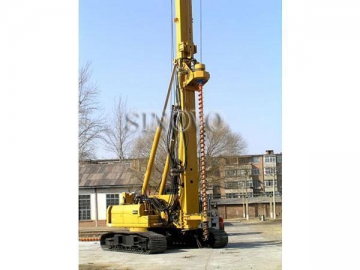

Our electro-hydraulic track pile driving rig, as its name suggests, is a machine driven by electric-hydraulic control system. It can be equipped with hydraulic vibrator, hydraulic hammer, DTH, auger device etc. Various construction methods can be realized by modular combination, such as SMW, CFG, CFA, DRA and PRD.
This type of piling rig is widely used in underground piling fundamental construction and deep foundation pit supporting construction of buildings, bridges, ports, subways and so on.
As our electro-hydraulic track pile driving rigs are reliable, environmentally friendly, cost-effective and easy to operate, they have won us customers from many countries, including Singapore, Russia, India, Turkey, Ukraine, Austria, Nigeria, among others.
Technical Parameters SF608 Electro-Hydraulic Track Pile Driving Rig
| Technical Parameters |
| | Euro Standards | U.S. Standards |
| Main winch pull (1 layer) | 94kN | 21132 lbf |
| Drum capacity | 350M | 1148 ft |
| Luffing winch pull (1 layer) | 87kN | 19558 lbf |
| Drum capacity | 175M | 574 ft |
| Auxiliary winch pull (1 layer ) | 88kN | 19783 lbf |
| Drum capacity | 150M | 495ft |
| Third winch pull (1 layer) | 88kN | 19783 lbf |
| Drum capacity | 100M | 328ft |
| Hydraulic system pressure | 29.5MPa | 4279psi |
| Max leader length | 36M | 118ft |
| Allowable extraction force | 600kN | 134885lbf |
| Counter weight composition | 3.3T×5 | 3.25 long ton×5 |
SF708 Electro-Hydraulic Track Pile Driving Ri
| Technical Parameters |
| | Euro Standards | U.S. Standards |
| Main winch pull (1 layer) | 116kN | 26078 lbf |
| Drum capacity | 520M | 1706 ft |
| Luffing winch pull (1 layer) | 114kN | 25628 lbf |
| Drum capacity | 190M | 623 ft |
| Auxiliary winch pull (1 layer ) | 88kN | 19783 lbf |
| Drum capacity | 150M | 495ft |
| Third winch pull (1 layer) | 88kN | 19783 lbf |
| Drum capacity | 100M | 328ft |
| Hydraulic system pressure | 29.5MPa | 4279psi |
| Max leader length | 39M | 128ft |
| Allowable extraction force | 700kN | 157366lbf |
| Counter weight composition | 3.3T×6 | 3.25 long ton×6 |
SF808 Electro-Hydraulic Track Pile Driving Rig
| Technical Parameters |
| | Euro Standards | U.S. Standards |
| Main winch pull (1 layer) | 125kN | 28101lbf |
| Drum capacity | 550M | 1803 ft |
| Luffing winch pull (1 layer) | 114kN | 25628 lbf |
| Drum capacity | 195M | 640 ft |
| Auxiliary winch pull (1 layer ) | 88kN | 19783 lbf |
| Drum capacity | 200M | 656ft |
| Third winch pull (1 layer) | 88kN | 19783 lbf |
| Drum capacity | 100M | 328ft |
| Hydraulic system pressure | 29.5MPa | 4279psi |
| Max leader length | 42M | 138ft |
| Allowable extraction force | 700kN | 157366lbf |
| Counter weight composition | 3.3T×7 | 3.25 long ton×7 |
