1BT9-SP BSP Male 60° Cone Hose Adapter, 90° Elbow
Application: for use with hydraulic braided hoses
Materials:- Stainless steel BSP male 60° cone hose adapter, 90° elbow
- Carbon steel BSP male 60° cone hose adapter, 90° elbow

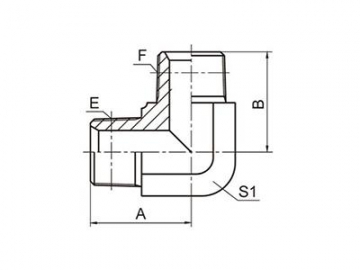

| Part No. | Thread | Dimensions | ||||
| E | F | A | B | S1 | ||
| 1BT9-04SP | G1/4''×19 | R1/4''×19 | 25 | 26 | 14 | |
| 1BT9-06SP | G3/8''×19 | R3/8''×19 | 27.5 | 28.5 | 16 | |
| 1BT9-08SP | G1/2''×14 | R1/2''×14 | 34.5 | 36 | 22 | |
| 1BT9-10-08SP | G5/8''×14 | R1/2''×14 | 35 | 36 | 22 | |
| 1BT9-10-12SP | G5/8''×14 | R3/4''×14 | 39 | 43.5 | 27 | |
| 1BT9-12SP | G3/4''×14 | R3/4''×14 | 40 | 43 | 27 | |
| 1BT9-16SP | G1''×11 | R1''×11 | 46 | 50 | 33 | |
| 1BT9-20SP | G1.1/4''×11 | R1.1/4''×11 | 52 | 59 | 41 | |
| 1BT9-24SP | G1.1/2''×11 | R1.1/2''×11 | 57.5 | 62.5 | 48 | |
| 1BT9-32SP | G2''×11 | R2''×11 | 67 | 75 | 63 | |
