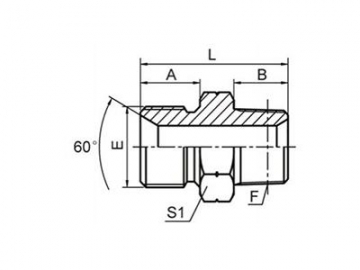

1BT-SP BSP Male 60° Cone Hose Adapter
Application: for use with hydraulic braided hoses
Materials:- Stainless steel BSP male 60° cone hose adapter
- Carbon steel BSP male 60° cone hose adapter
| Part No. | Thread | Dimensions | |||||
| E | F | A | B | L | S1 | ||
| 1BT-04SP | G1/4''×19 | R1/4''×19 | 12 | 14.5 | 32 | 19 | |
| 1BT-06SP | G3/8''×19 | R3/8''×19 | 13.5 | 15 | 35.5 | 22 | |
| 1BT-08SP | G1/2''×14 | R1/2''×14 | 16 | 20 | 45 | 27 | |
| 1BT-10-08SP | G5/8''×14 | R1/2''×14 | 17.5 | 20 | 46.5 | 30 | |
| 1BT-10-12SP | G5/8''×14 | R3/4''×14 | 17.5 | 20 | 46.5 | 30 | |
| 1BT-12SP | G3/4''×14 | R3/4''×14 | 18.5 | 20 | 48.5 | 32 | |
| 1BT-16SP | G1''×11 | R1''×11 | 20.5 | 25.5 | 58 | 41 | |
| 1BT-20SP | G1.1/4''×11 | R1.1/4''×11 | 20.5 | 26.5 | 62 | 50 | |
| 1BT-24SP | G1.1/2''×11 | R1.1/2''×11 | 23 | 26.5 | 64.5 | 55 | |
| 1BT-32SP | G2''×11 | R2''×11 | 25.5 | 30 | 72.5 | 70 | |
