1J JIC Male 74˚ Cone Hose Adapter
Application: for use with hydraulic braided hoses
Materials:- Stainless steel JIC male 74˚ cone hose adapter
- Carbon steel JIC male 74˚ cone hose adapter

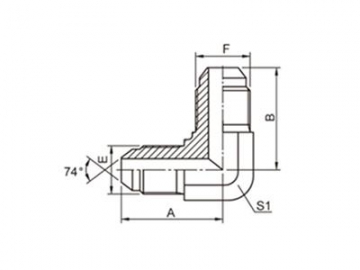

| Part No. | Thread | Dimensions | |||||
| E | F | A | B | L | S1 | ||
| 1J-04 | 7/16"×20 | 7/16"×20 | 14 | 14 | 34 | 12 | |
| 1J-05 | 1/2"×20 | 1/2"×20 | 14 | 14 | 34 | 14 | |
| 1J-06 | 9/16"×18 | 9/16"×18 | 14.1 | 14.1 | 34.2 | 17 | |
| 1J-08 | 3/4"×16 | 3/4"×16 | 16.7 | 16.7 | 42 | 22 | |
| 1J-10 | 7/8"×14 | 7/8"×14 | 19.3 | 19.3 | 46.5 | 24 | |
| 1J-12 | 1.1/16"×12 | 1.1/16"×12 | 21.9 | 21.9 | 54 | 30 | |
| 1J-16 | 1.5/16"×12 | 1.5/16"×12 | 23.1 | 23.1 | 57 | 36 | |
| 1J-20 | 1.5/8"×12 | 1.5/8"×12 | 24.3 | 24.3 | 62 | 46 | |
| 1J-24 | 1.7/8"×12 | 1.7/8"×12 | 27.5 | 27.5 | 70 | 50 | |
| 1J-32 | 2.1/2"×12 | 2.1/2"×12 | 33.9 | 33.9 | 85 | 65 | |
