16711 JIC Straight Male 74° Cone Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel JIC straight male 74° cone fittings
- Carbon steel JIC straight male 74° cone fittings

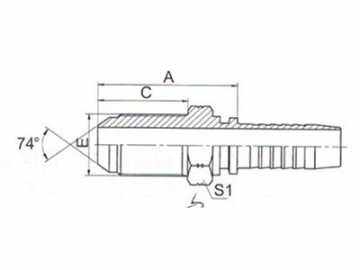

| Part No. | Thread | Hose Bore | Dimensions | ||||
| E | DN | DASH | A | C | S1 | ||
| 16711-04-04 | 7/16''×20 | 6 | 04 | 26.5 | 14 | 12 | |
| 16711-05-05 | 1/2''×20 | 8 | 05 | 26.5 | 14 | 14 | |
| 16711-06-05 | 9/16''×18 | 8 | 05 | 26.5 | 14.1 | 17 | |
| 16711-06-06 | 9/16''×18 | 10 | 06 | 26.5 | 14.1 | 17 | |
| 16711-08-08 | 3/4''×16 | 12 | 08 | 32 | 16.7 | 22 | |
| 16711-10-10 | 7/8''×14 | 16 | 10 | 35.5 | 19.3 | 24 | |
| 16711-12-12 | 1.1/16''×12 | 20 | 12 | 40 | 21.9 | 27 | |
| 16711-14-12 | 1.3/16''×12 | 20 | 12 | 40.6 | 22.6 | 32 | |
| 16711-16-16 | 1.5/16''×12 | 25 | 16 | 43.5 | 23.1 | 36 | |
| 16711-20-20 | 1.5/8''×12 | 32 | 20 | 47.5 | 24.3 | 46 | |
| 16711-24-24 | 1.7/8×12 | 40 | 24 | 53 | 27.5 | 50 | |
| 16711-32-32 | 2.1/2''×12 | 50 | 32 | 62 | 33.9 | 65 | |
