Rotary Barrel Polisher

Rotary Barrel Polisher
Rotary Barrel Polisher
Rotary Barrel Polisher
Request a Quote

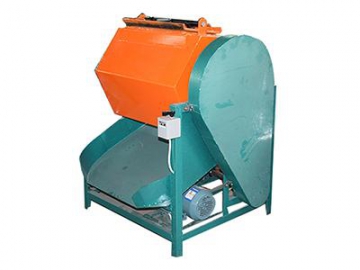

The rotary barrel polisher features simple structure, easy operations and low cost. The centrifugal movement produces larger grinding force, which is suitable for removal of large burrs, thick rust layer and sharp edges of parts. Compared to manual finishing, its working efficiency increases 5 to 10 times, appropriate for mass large and medium-sized workpieces.

Application

Suitable for mass finishing of components, such as deburring, polishing, rust removal, scratch removal, radiusing and so on.

Parameters
Model CL-100 CL-160 CL-300
Capacity 100L 160L 300L
Motor Power 1.1kw 1.5kw 3.0kw
Speed 50r/min 50r/min 50r/min
Lining Thickness 6-12min 6-12min 6-12min
Weight 200kg 250kgs 300kgs
Size(L*W*H) 820*760*100mm 1000*800*1100mm 1200*950*1350mm
Advantages
  • The specially designed discharge bevel can completely empty the materials for recirculation.
  • Rubber, with high durability and high corrosion resistance, is utilized as the lining to absorb impacts from the workpiece and extend the using life.
  • A variable frequency governor can be added to satisfy the finishing requirements of different workpieces, precisely adjust speed and ensure the operation stability.
  • Environment friendly: no pollution and low noise.
