Centrifugal Barrel Finishing Machine Manufacturer

Centrifugal Barrel Finishing Machine

: http://ztprintingmachine.com/3-3-label-finishing-machine.html

The centrifugal barrel finishing machine takes advantage of centrifugal forces. Compared to the vibratory finishing machine, the centrifugal barrel finishing machine features more powerful grinding forces, the parts finished by which is intact, brighter and more accurate, applicable to finishing the workpieces with larger size, thicker burr and higher hardness.

Application

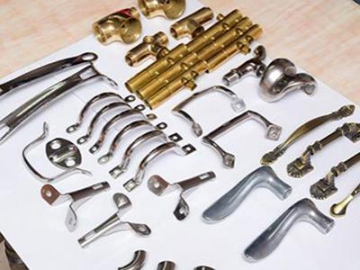

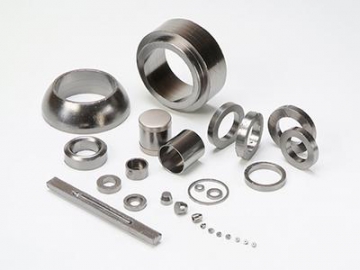

The centrifugal finishing machine is suitable for cleaning, deburring, polishing, radiusing and rust removal of the large-size components.

Parameters

Model	Capacity	Motor Power	Speed	Inner Lining	Weight	Size (LWH)
CLW-15	2*7.5L	1.1kw	185r/min	5-8mm	200kg	850880980mm
CLW-30	4*7.5L	1.5kw	185r/min	5-8mm	350kg	9709901175mm
CLW-40	4*10L	2.2kw	165r/min	6-10mm	800kg	110010001400mm
CLW-60	4*15L	5.5kw	165r/min	8-12mm	1000kg	115011001700
CLW-80	4*20L	5.5kw	145r/min	8-12mm	1200kg	130012501815mm

Features

Instead of manual work, the centrifugal barrel finishing machine increases the working efficiency by 10 to 20 times. The several working hours of manual work will shorten to few minutes.
The finishing machine can maintain the original shape and precision of the workpiece during the finishing. Have the advantage of finishing high precision parts.

Advantages

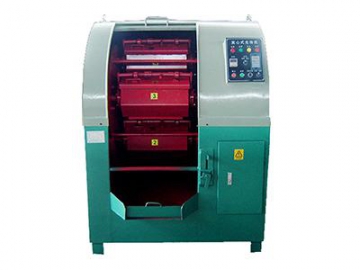

The finishing cavity is divided into several barrels handling different types of workpieces.
Polyurethane is used as the liner, which featuring high temperature resistance, acid and alkali resistance, long working life and easy replacement.
An upper circular arc cover with a metal sliding door is configured on the finishing machine. The machine will not be started until the door is closed to ensure the operation security.
60 L capacity larger machines are equipped an automatic discharge mechanism to reduce the labor intensity and simplify the discharge.
A variable frequency governor can be added to improve the centrifugal grinding and polishing performance and satisfy the requirements of different types of workpieces.
A time controller can be added to exactly control the time and ensure a stable finishing quality.

Principle
