Stainless Steel Nipple Drinker Bracket Manufacturer

Stainless Steel Nipple Drinker Bracket

Request a Quote

About Us: http://pipefittingsltd.com/1-3-7-thread-pipe-nipple.html

CIJIA has been dedicated to the design and manufacture of hog watering products since its establishment. Nipple drinker brackets with pipes are one of the core products to pair with drinking systems. Nipple drinkers are a simple and effective way to offer clean drinking water with good hygiene. When the nipple drinkers are fixed with proper height, the water losses can be greatly minimized. Choosing the right nipple drinker bracket is very important for the drinker line. We can customize the nipple drinker bracket with different materials and thread types to meet different requirements on the livestock drinking system.

Some nipple drinker brackets we ever manufactured are shown below. Customization service is available as request.

Stainless steel nipple drinking pipe and bracket

Code Thread Material Weight Size

CJ-BK618 G1/2" SS304 850g 55*
31*
23cm

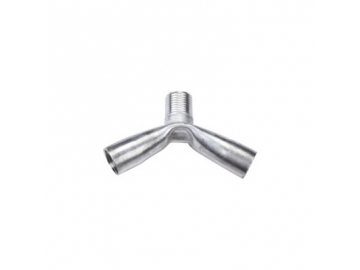

2. Stainless steel mounting bracket, Y connector

  Code Thread Material Weight Size

  CJ-BK621 G1/2" SS304 100g 26*22*28cm

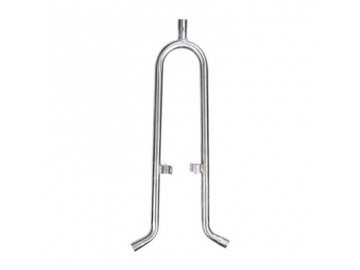

2. Stainless steel nipple water bracket

  Code Thread Material Weight

  CJ-BK623 G1/2" SS304 1000g

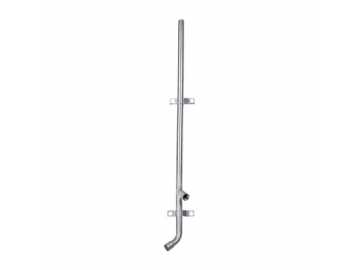

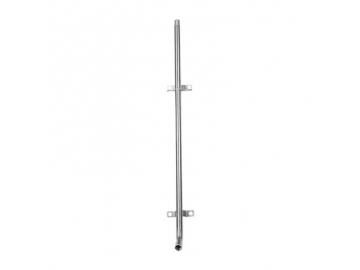

2. Stainless steel nipple drinking pipe and bracket set

  Code Thread Material Weight Length

  CJ-BK629 G1/2" SS304 935g 985mm

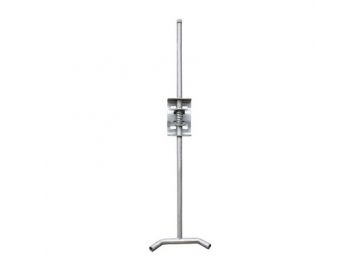

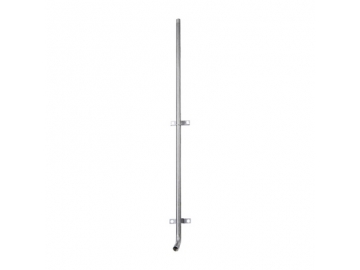

2. Stainless steel adjustable height mounting bracket

  Code Thread Material Weight Length

  CJ-BK630 G1/2" SS304 750g 750mm

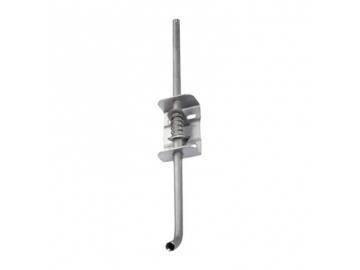

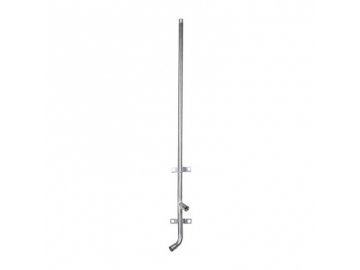

2. Stainless steel adjustable hog nipple water bracket

  Code Thread Material Weight Length

  CJ-BK635 G1/2" SS304 760g 750mm
2. Stainless steel nipple drinking pipe and bracket

  Code Thread Material Weight Length

  CJ-BK639 G1/2" SS304 1060g 985mm
2. Galvanized steel adjustable height mounting bracket

  Code Thread Material Weight Length

  CJ-BK702 G1/2" Galvanized steel 2.3kg 950mm
2. Steel adjustable pig drinker bracket

  Code Thread Material Size

  CJ-BK801 G1/2" Galvanized steel/SS304 600*
  630*
  1000mm

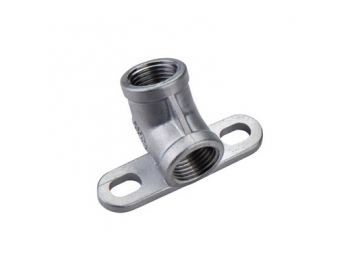

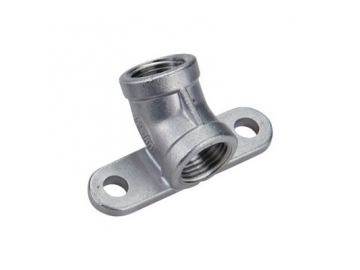

2. Stainless steel nipple bracket 45º

  Code Thread Round hole Material Weight

  CJ-EB45-1/2" G1/2" Dia8.8mm SS201 or SS304 103g
2. Stainless steel nipple bracket 45º

  Code Thread Ellipse hole Material Weight

  CJ-EB45-1/2"L G1/2" 13x8.8mm SS201 or SS304 100g
2. Stainless steel nipple bracket 45º

  Code Thread Round hole Material Weight

  CJ-EB45-3/4" G1/2" Dia8.8mm SS201 or SS304 148g

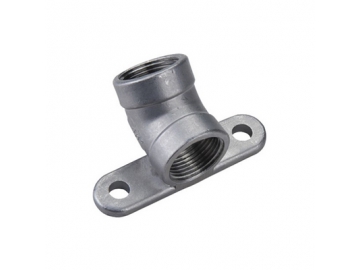

2. Stainless steel nipple bracket 60º

  Code Thread Round hole Material Weight

  CJ-EB60-1/2" G1/2" Dia8.8mm SS201 or SS304 105g

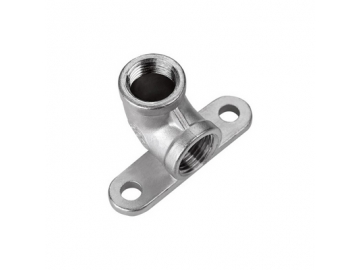

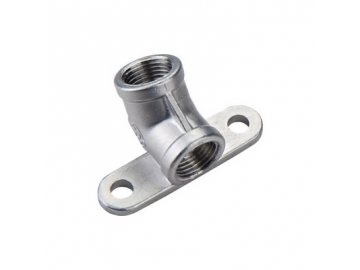

2. Stainless steel nipple bracket 90º

  Code Thread Round hole Material Weight

  CJ-EB90-1/2" G1/2" Dia8.8mm SS201 or SS304 109g
