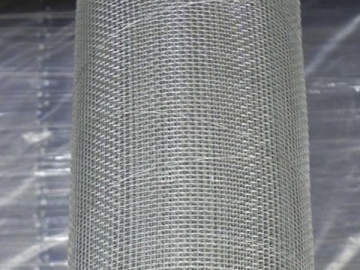

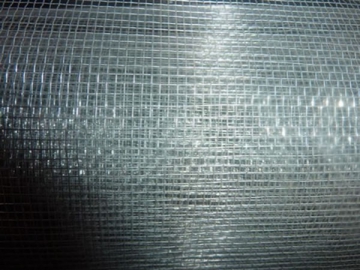

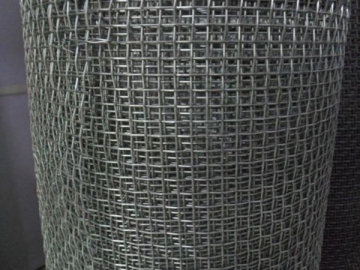

Galvanized Wire Mesh
Steel Mesh / Wire Cloth / Mesh Wire
Galvanized wire mesh is a wire cloth that is often applied for window screening and safety guards on machinery enclosures. The steel mesh can also be used to filter certain liquids, gases and sieving grain.
Technical Parameters| Screen Number | Wire Diamter (mm) | Opening(mm) |
| 3 | 1.60 | 6.87 |
| 4 | 1.20 | 5.15 |
| 5 | 0.95 | 4.13 |
| 6 | 0.80 | 3.43 |
| 8 | 0.70 | 2.43 |
| 10 | 0.60 | 1.94 |
| 12 | 0.55 | 1.56 |
| 14 | 0.41 | 1.40 |
| 16 | 0.35 | 1.24 |
| 18 | 0.30 | 1.11 |
| 20 | 0.27 | 1.00 |
| 22 | 0.25 | 0.90 |
| 24 | 0.23 | 0.83 |
| 26 | 0.20 | 0.78 |
| 28 | 0.18 | 0.73 |
| 30 | 0.15 | 0.70 |
| 35 | 0.14 | 0.59 |
| 40 | 0.14 | 0.50 |
| 50 | 0.12 | 0.39 |
| 60 | 0.12 | 0.30 |
Note: The specification above is just for your reference.
